MX1 series
Description
Product Characteristics
| P/N Series | MX1 |

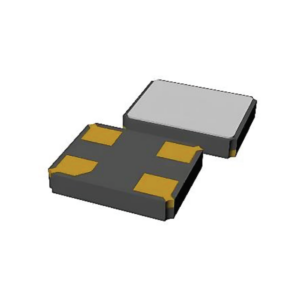

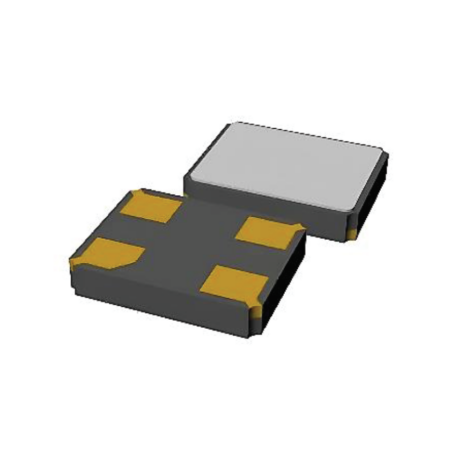

| Description | Ceramic 4-Pad SMD1612 Crystal |
| Frequency | 24 ~ 60MHz |
| Load Capacitance | 6 ~ 30pF |
| Frequency Tolerance | ±10 ~ ±100ppm |
| Frequency Stability | ±10~±100ppm |
| ESR (Equivalent Series Resistance) | 80 ~ 150Ω |
| Operating Temperature | -40 ~ 85 °C |
| Package/Case | 4-SMD (1.6×1.2) |
| Applications | General Purpose |
Environmental Classifications
| RoHS Status | RoHS Compliant |
| Reach Status | REACH Unaffected |
