Showing 1 to 10 of 10 entries (filtered from 10 total entries)

Series Data Sheet ResistanceTolerancePowerTemperature CoefficientOperating TemperaturePackage / CaseFeaturesApplications

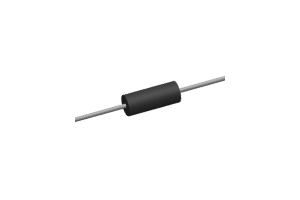

MFM
https://www.meritekusa.com/wp-content/uploads/2024/09/Meritek-Spec-MFM-Series-4b-240903.pdf
50.5KΩ
±0.02%, ±0.05%, ±0.5%, ±1%
1/8W, 1/4W, 1/2W, 3/4W, 1W
±5ppm/°C, ±10ppm/°C, ±15ppm/°C, ±25ppm/°C
-55°C ~ 155°C
Axial
Molded
General Purpose
MSMF-A
https://www.meritekusa.com/wp-content/uploads/2023/10/MSMF-A-Series-3b-230301.pdf
10Ω ~ 2MΩ
±1%, ±5%
1W, 2W, 3W
±100ppm/°C
-55ºC ~ 150ºC
SMD
Molded
AEC-Q200
MSMF
https://www.meritekusa.com/wp-content/uploads/2023/08/MSMF-Series.pdf
10Ω ~ 2MΩ
±1%, ±5%
2W, 3W, 5W, 7W
±100ppm/°C
-55ºC ~ 200ºC
SMD
Flame Proof, Molded
General Purpose
CSW
https://www.meritekusa.com/wp-content/uploads/2021/06/csw-series-anti-surge-low-ohmic-metal-film-resistor.pdf
50mΩ ~ 33Ω
±0.5%, ±1%, ±2%, ±5%
1W, 1.5W, 2W, 3.5W
±50ppm/°C, ±100ppm/°C
-55°C ~ 170°C
1206, 1210, 2010, 2512
Anti-Surge, Low Ohmic
General Purpose
FRN
https://meritekusa0419.wpengine.com/wp-content/uploads/2018/06/Fusible-Resistors-FRN-Series.pdf
1Ω ~ 1KΩ
±5%
1/4W, 1/2W, 1W, 2W
±350ppm/°C
-40°C ~ 155°C
Axial
Fusible, Flame Proof
General Purpose
SRM
https://meritekusa0419.wpengine.com/wp-content/uploads/2018/06/Anti-Surge-Resistors-SRM-Series.pdf
1KΩ ~ 1GΩ
±1%, ±2%, ±5%, ±10%
1/4W, 1/2W, 1W, 2W, 3W
±200ppm/°C
-40°C ~ 200°C
Axial
Anti-Surge, Flame Proof
General Purpose
MFP
https://www.meritekusa.com/wp-content/uploads/2018/06/Flame-Proof-Resistor-MFP-Series.pdf
0.1Ω ~ 1MΩ
±0.1%, ±0.25%, ±0.5%, ±1%
1/4W, 1/2W, 1W, 2W, 3W
±5ppm/°C, ±10ppm/°C, ±15ppm/°C, ±25ppm/°C, ±50ppm/°C, ±100ppm/°C, ±200ppm/°C
-55°C ~ 155°C
Axial
Flame Proof
General Purpose
MFP(SS)
https://www.meritekusa.com/wp-content/uploads/2023/10/MFP-SS-Series.pdf
5Ω ~ 1MΩ
±0.5%, ±1%, ±5%
1/2W, 1W, 2W, 3W, 4W
±25ppm/°C, ±50ppm/°C, ±100ppm/°C, ±200ppm/°C
-55°C ~ 155°C
Axial
Flame Proof
General Purpose
MF
https://www.meritekusa.com/wp-content/uploads/2018/06/Standard-Resistor-MF-Series.pdf
0.1Ω ~ 10MΩ
±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
1/8W, 1/6W, 1/4W, 2/5W, 1/2W, 3/5W, 1W, 2W, 3W
±5ppm/°C, ±10ppm/°C, ±15ppm/°C, ±25ppm/°C, ±50ppm/°C, ±100ppm/°C, ±200ppm/°C
-55°C ~ 155°C
Axial
Axial Leaded
General Purpose
CSL
https://www.meritekusa.com/wp-content/uploads/2023/07/CSL-series.pdf
39mΩ ~ 10Ω
±0.25%, ±0.5%, ±1%, ±2%, ±5%
1/20W, 1/16W, 1/10W, 1/8W, 1/5W, 2/5W, 1/4W, 1/2W, 3/4W, 1W, 1.5W, 2W, 3W
±50ppm/°C, ±100ppm/°C, ±150ppm/°C, ±200ppm/°C
-55°C ~ 155°C
0201, 0402, 0603, 0612, 0805, 1020, 1206, 1210, 1225, 2010, 2512
Current Sense, Low Ohmic
General Purpose
