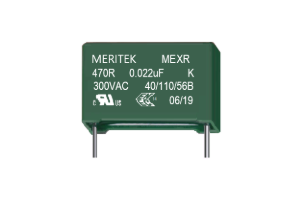

MEXR series
Description
Product Characteristics
| Part Number | MEXR |
| Capacitance Range | 0.01µF ~ 1.0µF, ±5%, ±10%, ±20% |
| Resistance Range | 2.2 Ω ~470Ω, ±5%, ±10%, ±20% |
| Resistance Power Rating | 1W (Standard), 1/4W, 1/2W, 2W, 3W, 4W; 5W, 9W,10W |
| Voltage – Rated AC | 250V, 300V |
| Peak Pulse Voltage | 1000V, (Max 12 A Repetitive. Max 20 A Peak for Transients) |
| Operating Temperature | -40°C ~ 110°C |
| Climate Category | 40/110/56/B |
| Safety Recognized | UL, ENEC |
Environmental Classifications
| RoHS Status | ROHS Compliant |
| REACH Status | REACH Unaffected |
Compliance Validation
