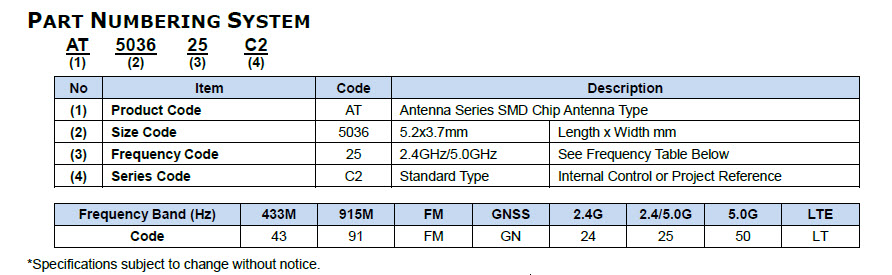

Part Number
|
AT503625C2
|
Description
|
2450/5500MHz RF Ceramic Antenna
|
Lead Free Status / RoHS Status
|
|
Moisture Sensitivity Level (MSL)
|
|
Additional Information
|
–
|
Product Characteristics
Center Frequency | 2450/5500MHz |
Frequency Band | 2400~2500 MHz/5000~6000 MHz |
Efficiency | 73/80% |
Azimuth Bandwidth | Reflow Process Compatible |
VSWR | <2.0 |
Package / Case | 5036 |
Applications | |
Mounting Type | Automatic Surface Mount |
Return Loss | |
Polarization | Linear |
Peak Gain | 3.0/3.3dBi |
Impedance (ohm) | 50 |
Features | Linear Polarization |
Size / Dimension | 5.2 x 3.7mm |
Series | C2 |
Packaging | Tape & Reel |
Part Status | Active |
