Part Number
|
SM8S14A
|
|
Description
|

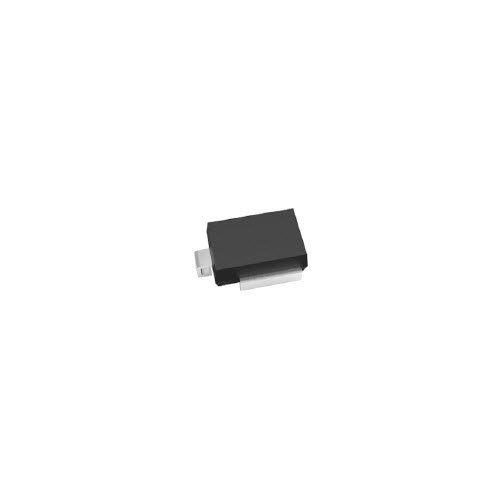

17.2V 284A Transient Voltage Suppressor DO-218AB AEC-Q101
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
AEC-Q101 qualified
|
Product Characteristics
| Breakdown Voltage-Min | 15.6V |
| Breakdown Voltage-Max | 17.2V |
| Working peak reverse voltage | 14V |
| Storage temperature | -55~+175degC |
| Operating Temperature | -55~+175degC |
| Package / Case | DO-218AB |
| Applications | Automotive |
| Mounting Type | Surface Mount |
| Reverse Leakage Current | 10uA |
| Reverse Leakage Current @ TJ=175?C | 150uA |
| Maximum Reverse Surge Current | 284A |
| Maximum Clamping Voltage | 23.2V |
| Thermal Resistance | – |
| Features | Meet ISO 7637-2 5a/5b and ISO 16750 loaddump test |
| Lead Type | – |
| Series | SM8S-A |
| Packaging | Tape and Reel |
| Part Status | Active |
