MFT10N320TOLL
Description
Product Characteristics
| P/N Series | MFT10N320TOLL |
| Description | Mosfet N 100V 320A 390.6W TOLL |
| FET-Type | N |
| Drain to Source Voltage (Vdss) | 100V |
| Continuous Drain Current (Id) @ 25°C | 320A |
| Rds On (Max) @ Id, Vgs | 1.6mΩ |
| Gate Charge (Qg) (Max) @ Vgs | 250nC |
| Input Capacitance (Ciss) (Max) @ Vds | 14300pF |
| Power Dissipation (Max) | 390.6W |

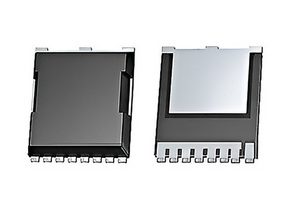

| Package / Case | TOLL |
| Application | General Purpose |
Environmental Classifications
| RoHS Status | ROHS Compliant |
| Reach Status | REACH Unaffected |
