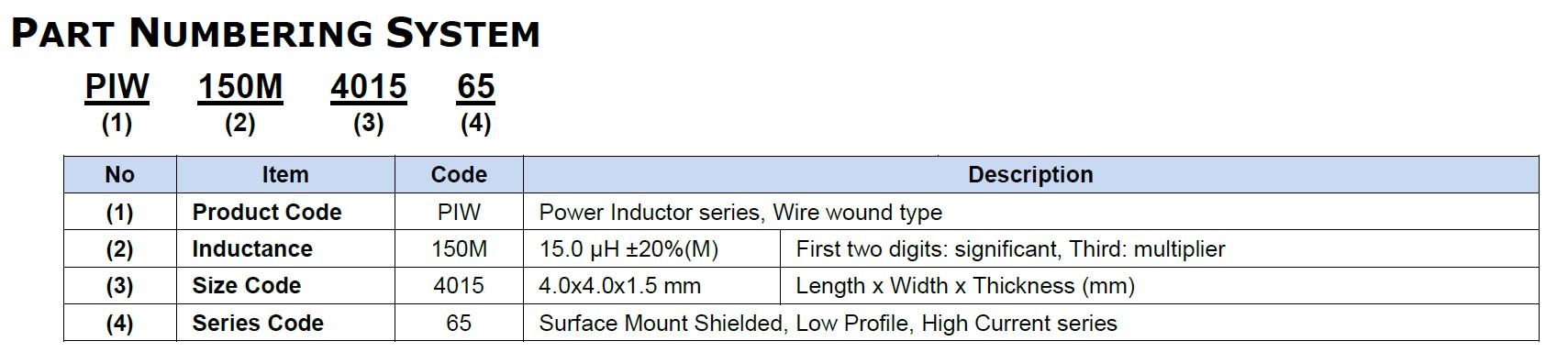

Part Number
|
PIW-401565
|
|
Description
|
Power Inductor
SMD Low Profile, High Current Type |
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 1.0~15µH |
| Tolerance | ±20% |
| Test Frequency (Hz) | 1V/100K |
| Operating Temperature | -40 ~ 125 degC |
| Series Code | 65/Surface Mount Shielded, Low Profile, High Current series |
| DC Resistance (Max.) | 0.033~0.230 mΩ±20% |
| Applications | DC/DC Converter, Battery Powered Devices, Low Profile High Current Power Supply, Notebook/Server |
| Package / Case | 4015/4.0×4.0x1.5 mm |
