Part Number
|
PIW-2016BM65
|
|
Description
|

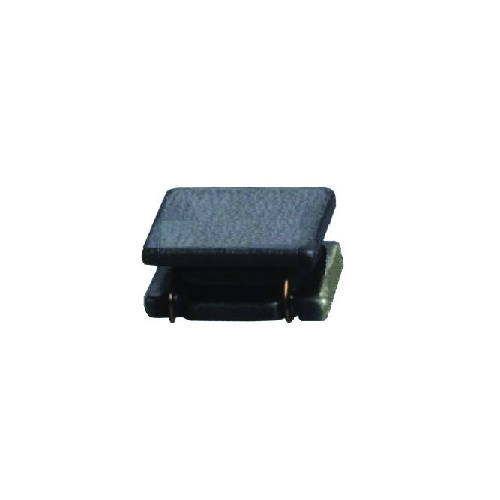

Power Inductor
SMD Low Profile, High Current AEC-Q200 |
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 0.24~ 22 µH |
| Tolerance | +/-20% |
| Test Frequency (Hz) | 1V/100K |
| Operating Temperature | -55 ~ 125 degC |
| Series Code | M65/Surface Mount Shielded, Low Profile, High Current series, AEC-Q200 Compliant |
| DC Resistance (Max.) | 24~2160 mΩ |
| Applications | DC/DC Converter, Battery Powered Devices, Low Profile High Current Power Supply, Notebook/Server |
| Package / Case | 2016A/2.5×2.0x0.7 mm |
