Part Number
|
SIC03-41
|
|
Description
|

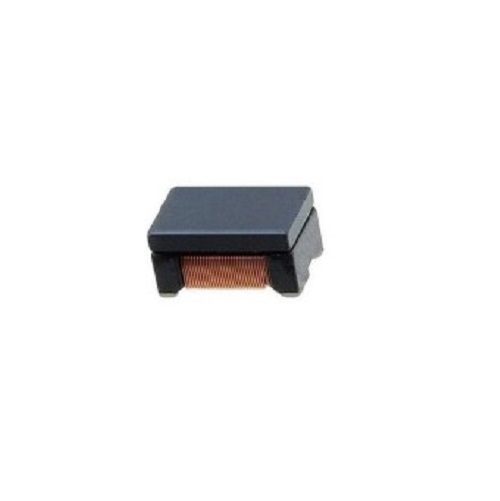

Common Mode Filter 1.6×0.8mm
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
Low Profile Construction Design
|
Product Characteristics
| Common mode Impedance (ohm) @100MHz | 22 ±25% ~ 250 ±25% |
| Tolerance | +/-25% |
| DC Resistance (ohm) Max. | 80 ~ 280 |
| Rated Current (mA) Max. | 400 ~ 500 |
| Operating Temperature | -40 ~ 105 °C |
| Package / Case | 0504/0603/0805/1206/1210/1812 |
| Applications | High-Density Portable Devices, Personal Computers, Display Panels, DC Power Lines and Automotive Power Trains |
| Mounting Type | Surface Mount |
| Rated Voltage (V) | 10 |
| Insulation Resistance (Mohm) Min. | 100 |
| Withstand Voltage (V) | 125V |

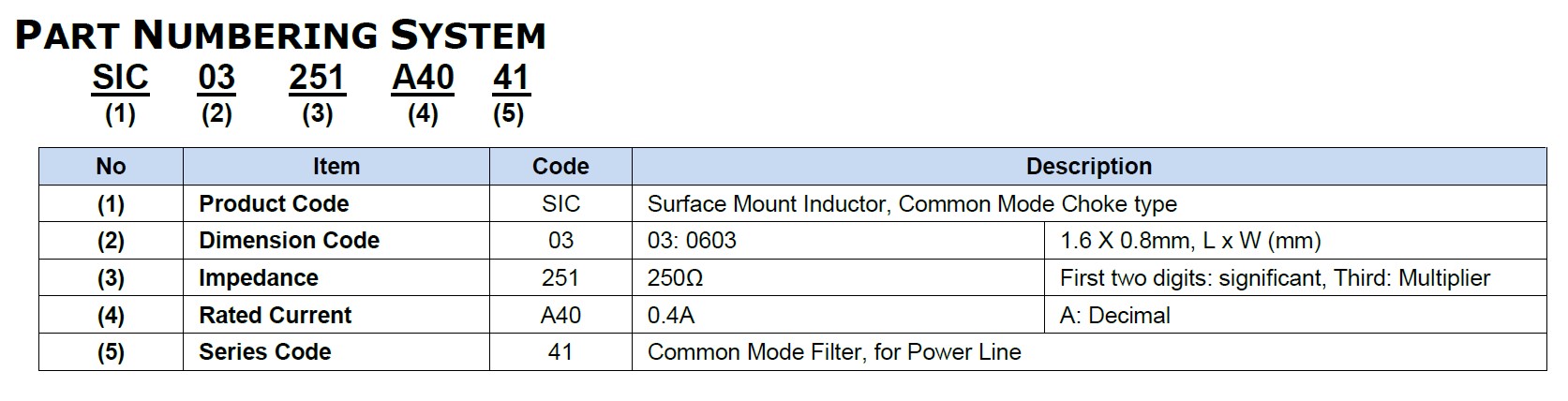

| Product Code | SIC , Surface Mount Inductor, Common Mode Choke type |
| Leakage Current @5V Max(uA) | 1 |
| Impedance | 45Ω ,90Ω,120Ω,180Ω , 220Ω, 250Ω |
| Feature | Common Mode Filter For Large Current Applications |
| Series | SIC03-41 |
| Packaging | Tape and Reel |
| Part Status | Active |
