SIM-24 series
Description
Product Characteristics
| Part Number | SIM-24 series |

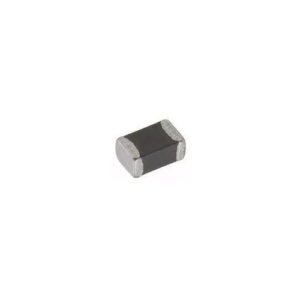

| Description | Chip Coil Inductor High Power |
| Inductance | 0.24μH ~ 6.8μH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.0A ~ 9.0A |
| DC Resistance (Max) | 15mΩ ~ 276mΩ |
| Q Test Frequency | 1MHz |
| Operating Temperature | -55 ~ 125°C |
| Package/Case | 0806, 1008, 1210 |
| Applications | General Purpose |
Environmental Classifications
| RoHS Status | ROHS Compliant |
| REACH Status | REACH Unaffected |
