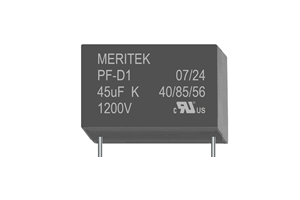

PF-D1 series
Description
Product Characteristics
| Series | PF-D1 |
| Description | Power Film Capacitor, DC LINK Metallized PP Film UL810 |
| Capacitance | 1.0µF ~ 200µF |
| Tolerance | 5%, 10%, 20% |
| Voltage – Rated DC | 400, 550, 600, 700, 800, 900, 1000, 1100, 1200V |
| Voltage – Rated AC | – |
| Operating Temperature | -40 ~ +105 °C |
| Ratings | UL810 |
| Features | THB IIA |
| Applications | DC LINK |
| Pin/Terminal | 2 or 4 PIN |
| Lead Spacing | 27.5, 37.5, 52.5mm |
Environmental Classifications
| RoHS Status | RoHS Compliant |
| Reach Status | REACH Unaffected |
