Showing 1 to 6 of 6 entries (filtered from 6 total entries)

Series Data Sheet ResistanceTolerancePowerTemperature Coefficient (PPM/°C)Operating TemperaturePackage / CaseFeaturesApplications
CFM
https://www.meritekusa.com/wp-content/uploads/2018/06/MELF-Resistor-CFM-Series.pdf
1Ω ~ 1MΩ
±2%, ±5%
1/4W, 1/2W, 1W, 2W
±350ppm/°C, ±700ppm/°C, ±1000ppm/°C
-55°C ~ 155°C
0204, 0207, 0309
Carbon Film
General Purpose
FRM
https://meritekusa0419.wpengine.com/wp-content/uploads/2018/06/Fusible-MELF-Resistors-FRM-Series.pdf
0.1Ω ~ 5.6KΩ
±5%
1/8W, 1/4W, 1/2W, 1W, 2W, 3W
±200ppm/°C
-55°C ~ 155°C
0204, 0207, 0309, 0411, 0515
Fusible
General Purpose
MFME
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-MFME-Series.pdf
1Ω ~ 1MΩ
±1%, 2%, 5%
1W, 2W
±50ppm/°C, ±100ppm/°C
-55°C ~ 155°C
0207, 0309
High Power
AEC-Q200
MFMH
https://meritekusa0419.wpengine.com/wp-content/uploads/2018/06/MELF-Precision-High-Voltage-Resistor-MFMH-Series.pdf
340KΩ ~ 3.4MΩ
±0.1%, ±0.25%, ±0.5%, ±1%, ±5%
2/5W, 1W
±25ppm/°C, ±50ppm/°C
-55°C ~ 155°C
0204, 0207
High Voltage
General Purpose
MFMM
https://meritekusa0419.wpengine.com/wp-content/uploads/2024/05/MFMM-Sereis.pdf
0.1Ω ~ 3.4MΩ
±0.1%, ±0.25%, ±0.5%, ±1%, ±5%
1/5W, 2/5W, 3/10W, 1/4W, 1/2W, 1W
±5ppm/°C, ±10ppm/°C, ±15ppm/°C, ±25ppm/°C, ±50ppm/°C, ±100ppm/°C
-55°C ~ 155°C
0102, 0204, 0207
Automotive
AEC-Q200

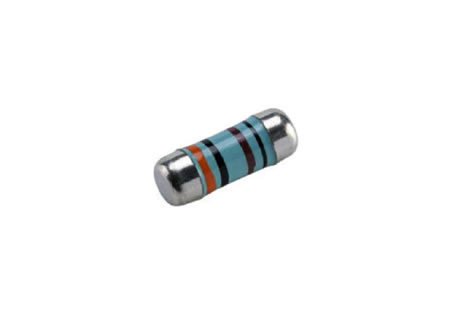

MFMP
https://meritekusa0419.wpengine.com/wp-content/uploads/2018/06/Precision-MELF-Resistors-MFMP-Series.pdf
1Ω ~ 10MΩ
±0.1%, ±0.25%, ±0.5%, ±1%, ±5%
1/4W, 2/5W, 1/2W, 1W
±10ppm/°C, ±15ppm/°C, ±25ppm/°C, ±50ppm/°C, ±100ppm/°C
-55°C ~ 155°C
0204, 0207
High Power
General Purpose
