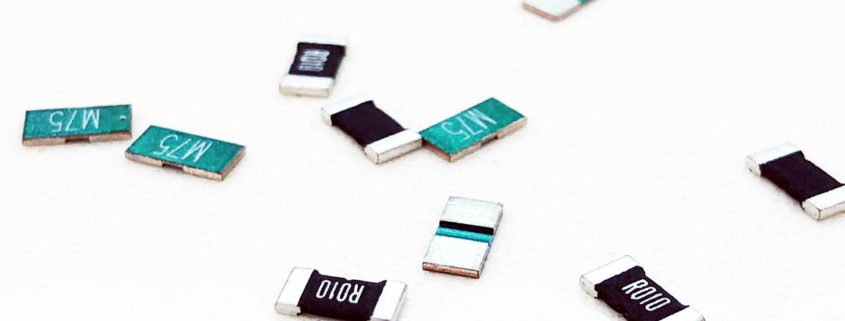

Showing 1 to 8 of 8 entries (filtered from 8 total entries)

Series Data Sheet ResistanceTolerancePowerTemperature Coefficient (PPM/°C)Operating TemperaturePackage / CaseFeaturesApplications
MLS
https://www.meritekusa.com/wp-content/uploads/2022/06/mls-series-metal-alloy-chip-resistor-smt-shunt-type.pdf
0.2mΩ ~ 5mΩ
1, 2, 5
2W, 2.5W, 3W, 4W, 5W, 6W, 7W, 8W, 9W, 10W, 12W, 15W
50, 75, 100, 115, 150, 200, 300
-65°C ~ 170°C
1206S, 2512S, 3920S, 5930S
Current Sense, Anti-Surge
AEC-Q200
MLRE
https://www.meritekusa.com/wp-content/uploads/2018/06/Current-Sensing-Low-Resistance-Resistors-MLRE-Series.pdf
1mΩ ~ 75mΩ
0.5, 1, 2, 5
1W, 1/2W, 1/3W, 3/4W
50, 75, 100, 125
-55°C ~ 150°C
0508S, 0603S, 0612S, 0805S, 1206S
Current Sense, Metal Alloy
General Purpose
MLR
https://www.meritekusa.com/wp-content/uploads/2018/06/Current-Sensing-Low-Resistance-Resistors-MLR-Series.pdf
0.2mΩ ~ 200mΩ
0.5, 1, 2, 5
1W, 1.5W, 2W, 3W, 3.5W, 4W, 5W, 1/2W
25, 50, 75, 100, 150, 175, 450
-55°C ~ 170°C
1206S, 2010S, 2512S, 2725S, 2728S, 4527S
Current Sense, Metal Alloy
General Purpose
MLSF
https://www.meritekusa.com/wp-content/uploads/2021/06/mlsf-series-shunt-four-terminal-metal-alloy-chip-resistor.pdf
0.5mΩ ~ 5mΩ
1, 2, 5
3W, 4W, 5W, 6W, 7W
50
-65°C ~ 170°C
1216S, 2726S, 4026S
Current Sense, Anti-Surge
AEC-Q200
MLRF
https://www.meritekusa.com/wp-content/uploads/2021/06/mlrf-series-current-sensing-four-terminal-metal-alloy-chip-resistor.pdf
0.3mΩ ~ 12mΩ
0.5, 1
2W, 3W
50, 75
-55°C ~ 170°C
1225S, 2512S, 3637S
Current Sense, 4-Terminal
General Purpose
CST
https://meritekusa0419.wpengine.com/wp-content/uploads/2018/06/Current-Sensing-Precision-Resistor-CST-Series.pdf
50mΩ ~ 1000mΩ
0.5, 1
1W, 3W, 1/4W, 1/8W, 3/4W, 1/10W, 1/16W
50, 100, 200
-55°C ~ 155°C
0402S, 0603S, 0805S, 1206S, 2010S, 2512S
Current Sense, Thin Film
General Purpose
CSM
https://www.meritekusa.com/wp-content/uploads/2018/06/Current-Sensing-Resistor-CSM-Series.pdf
10mΩ ~ 100mΩ
0.5, 1, 2, 5
1W, 1/2W, 1/4W, 1/8W, 3/4W
50, 100
-55°C ~ 155°C
0603S, 0805S, 1206S, 2010S, 2512S
Current Sense, Metal Alloy
General Purpose
MLR-MA
https://www.meritekusa.com/wp-content/uploads/2023/02/MLR-MA-Series-8b-230103-1.pdf
0.25mΩ ~ 1000mΩ
0.5, 1, 2, 5
1W, 1.5W, 2W, 3W, 4W, 5W, 1/2W, 3/4W
50
-55°C ~ 170°C
0805S, 1206S, 2010S, 2512S, 2725S, 2728S, 2817S, 4527S
Current Sense, Metal Alloy
AEC-Q200
