Showing 1 to 38 of 38 entries (filtered from 38 total entries)

Series Data Sheet Voltage - DC Reverse (Vr) (Max)Current - Average Rectified (Io)Voltage - Forward (Vf) (Typ)Reverse Recovery Time (Trr) (Typ)Peak Forward Surge Current, IFSMPackage / CaseApplication
FRED30120T2472
https://www.meritekusa.com/wp-content/uploads/2023/03/Meritek-Spec-FRED30120T2472-2b-221201.pdf
1200V
30A
3V
135nS
190A

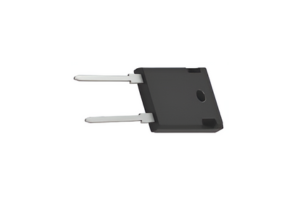

TO-247-2
General Purpose
FRED15120T2202
https://www.meritekusa.com/wp-content/uploads/2023/03/Meritek-Spec-FRED15120T2202-2b-221201.pdf
1200
15A
3.0V
70nS
100A
TO-220-2
General Purpose
FRED3060T2472
https://www.meritekusa.com/wp-content/uploads/2024/06/FRED3060T2472.pdf
600V
30A
2.3V
45nS
280A
TO-247-2
General Purpose
FRED3060LT263
https://www.meritekusa.com/wp-content/uploads/2025/01/Meritek-Spec-FRED3060LT263.pdf
600V
30A
1.3V
75nS
330A
TO-263
General Purpose
FRED3060ST263
https://www.meritekusa.com/products/diodes-and-bridges/fred/fred3060st263/
600V
30A
1.8V
45nS
280A
TO-263
General Purpose
FRED1560LT263
https://www.meritekusa.com/wp-content/uploads/2025/01/Meritek-Spec-FRED1560LT263.pdf
600V
30A
1.3V
70nS
180A
TO-263
General Purpose
FRED1560ST263
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED1560ST263.pdf
600V
15A
1.8V
42nS
140A
TO-263
General Purpose
FRED0860LT263
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED0860LT263.pdf
600V
8A
1.3V
60nS
85A
TO-263
General Purpose
FRED0860ST263
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED0860ST263.pdf
600V
8A
1.8V
35nS
75A
TO-263
General Purpose
FRED0860LDT252
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED0860LDT252.pdf
600V
8A
1.3V
60nS
85A
TO-252
General Purpose
FRED0860SDT252
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED0860SDT252.pdf
600V
8A
1.8V
35nS
75A
TO-252
General Purpose
FRED0860LCT252
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED860LCT252.pdf
600V
8A
1.3V
60nS
85A
TO-252
General Purpose
FRED0860SCT252
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED0860SCT252.pdf
600V
8A
1.8V
35nS
75A
TO-252
General Purpose
FRED30120LT220
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED30120LT220.pdf
1200V
30A
2.1V
160nS
160A
TO-220
General Purpose
FRED30120ST220
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED30120ST220.pdf
1200V
30A
3V
135nS
130A
TO-220
General Purpose
FRED08120LT220
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED08120LT220.pdf
1200V
8A
2.1V
105nS
40A
TO-220
General Purpose
FRED3060LT220
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED3060LT220.pdf
600V
30A
1.3V
75nS
330A
TO-220
General Purpose
FRED3060ST220
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED3060ST220.pdf
600V
30A
1.8V
45nS
280A
TO-220
General Purpose
FRED1560LT220
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED1560LT220.pdf
600V
15A
1.3V
70nS
180A
TO-220
General Purpose
FRED1560ST220
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED1560ST220.pdf
600V
15A
1.8V
42nS
140A
TO-220
General Purpose
FRED0860LT220
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED0860LT220.pdf
600V
8A
1.3V
60nS
95A
TO-220
General Purpose
FRED0860ST220
https://www.meritekusa.com/wp-content/uploads/2025/01/Meritek-Spec-FRED0860ST220.pdf
600V
8A
1.8V
35nS
85A
TO-220
General Purpose
FRED3060LT220F
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED3060LT220F.pdf
600V
30A
1.3V
75nS
330A
TO-220F
General Purpose
FRED3060ST220F
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED3060ST220F.pdf
600V
30A
1.8V
45nS
280A
TO-220F
General Purpose
FRED1560LT220F
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED1560LT220F.pdf
600V
15A
1.3V
70nS
180A
TO-220F
General Purpose
FRED1560ST220F
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED1560ST220F-1.pdf
600V
15A
1.8V
42nS
140A
TO-220F
General Purpose
FRED0860LT220F
https://www.meritekusa.com/wp-content/uploads/2025/01/Meritek-Spec-FRED0860LT220F.pdf
600V
8A
1.3V
60nS
85A
ITO-220
General Purpose
FRED0860ST220F
https://www.meritekusa.com/wp-content/uploads/2025/01/Meritek-Spec-FRED0860ST220F.pdf
600V
8A
1.8V
35nS
75A
TO-220F
General Purpose
FRED3060ST2472
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED3060ST2472.pdf
600V
30A
1.8V
45nS
280A
TO-247-2
General Purpose
FRED6060LT247
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED6060LT247.pdf
600V
60A
1.3V
75nS
230A
TO-247
General Purpose
FRED6060ST247
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED6060ST247.pdf
FRED3060LT247
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED3060LT247.pdf
600V
30A
1.3V
70nS
180A
TO-247
General Purpose
FRED3060CT247
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED3060ST247.pdf
600V
30A
1.8V
42nS
140A
TO-247
General Purpose
FRED30120ST2472
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED30120ST2472.pdf
1200V
30A
3V
135nS
190A
TO-247-2
General Purpose
FRED60120LT2472
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED60120T2472-4b-241015.pdf
1200V
60A
2V
220nS
330A
TO-247-2
General Purpose
FRED6060LT2472
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED6060LT2472.pdf
600V
60A
1.25V
135nS
590A
TO-247-2
General Purpose
FRED6060ST2472
https://www.meritekusa.com/wp-content/uploads/2025/01/Meritek-Spec-FRED6060ST2472.pdf
600V
60A
1.65V
55nS
550A
TO-247-2
General Purpose
FRED3060LT2472
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-FRED3060LT2472.pdf
600V
30A
1.3V
75nS
330A
TO-247-2
General Purpose
