Showing 1 to 23 of 23 entries (filtered from 23 total entries)

Series Data Sheet Voltage - DC Reverse (Vr) (Max)Current - Average Rectified (Io)Voltage - Forward (Vf) (Max)Reverse Recovery Time (Trr) (Max)Peak Forward Surge Current, IFSMPackage / CaseApplications
2CLG0520
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CLG0520-6b-260316.pdf
20KV
50mA
40V
0.15μs
2A
DO-312
General Purpose
2CLG0320
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CLG0320-6b-260316.pdf
20KV
30mA
45V
0.15μs
2A
DO-312
General Purpose
2CLG0210~2CLG0220
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CLG02102CLG0220-6b-260316.pdf
10KV, 12KV, 14KV, 16KV, 18KV, 20KV
20mA
40V
0.15μs
3A
DO-312
General Purpose
2CL77
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CL77-6b-260316.pdf
20KV
5mA
75V
0.08μs
0.5A
DO-312
General Purpose
2CL75, 2CL76
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CL75-2CL76-6b-260316.pdf
16KV, 18KV
5mA
60V, 66V
0.08μs
0.5A
DO-312
General Purpose
2CL70, 2CL71
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CL70-2CL71-6b-260316.pdf
6KV, 8KV
5mA
24V, 30V
0.08μs
0.5A
DO-306
General Purpose
2CL74A, 2CL75A
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CL74A-2CL75A-6b-260316.pdf
14KV, 16KV
5mA
51V, 60V
0.08μs
0.5A
DO-210
General Purpose
2CL72A, 2CL73A
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CL72A-2CL73A-6b-260316.pdf
10KV, 12KV
5mA
36V, 45V
0.08μs
0.5A
DO-210
General Purpose
2CL70A, 2CL71A
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CL70A-2CL71A-6b-260316.pdf
6KV, 8KV
5mA
24V, 30V
0.08μs
0.5A
DO-206
General Purpose
2CL4509, 2CL4512
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CL4509-2CL4512-6b-260316.pdf
9KV, 12KV
450mA
9V, 11V
-
30A
DO-722
General Purpose
2CL3509, 2CL3512
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CL3509-2CL3512-6b-260316.pdf
9KV, 12KV
350mA
9V, 10V
-
30A
DO-722
General Purpose
BY4~BY16
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-BY4BY16-6b-260316.pdf
4KV, 6KV, 8KV, 12KV, 16KV
300mA, 500mA, 1000mA
4V, 6V, 8V, 10V
-
100A
DO-722
General Purpose
2CLG3507, 2CLG3508
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CLG3507-2CLG3508-6b-260316.pdf
7.5KV, 8KV
350mA
13.5V, 14V
0.15μs
15A
DO-722
General Purpose
2CLG5018
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CLG5018-6b-260316.pdf
18KV
500mA
40V
0.15μs
30A
DO-415
General Purpose
2CLG5012
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CLG5012-6b-260316.pdf
12KV
500mA
28V
0.15μs
30A
DO-415
General Purpose
2CLG5010
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CLG5010-6b-260316.pdf
10KV
500mA
24V
0.15μs
30A
DO-415
General Purpose
2CLG5006
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CLG5006-6b-260316.pdf
6KV
500mA
15V
0.15μs
30A
DO-415
General Purpose
2CLG1015
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-2CLG1015-6b-260316.pdf
15KV
100mA
45V
0.15μs
2A
DO-415
General Purpose
SF2xG
https://www.meritekusa.com/wp-content/uploads/2026/03/Meritek-Spec-SF2xG-Series-6b-260223.pdf
50V, 100V, 150V, 200V, 300V, 400V, 600V
2A
1.7V
35ns
50A
DO-15
General Purpose
MUR30200T247
https://www.meritekusa.com/wp-content/uploads/2025/06/Meritek-Spec-MUR30-T247-4b-241015.pdf
200V, 400V, 600V
30A
1.6V
35ns
200A
TO-247
General Purpose

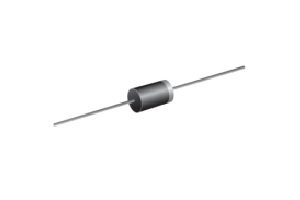

SF51G~SF58G
https://www.meritekusa.com/wp-content/uploads/2018/06/Rectifier-Superfast-Recovery-Leaded-SF51G-SF58G-Series.pdf
50V, 100V, 150V, 200V, 300V, 400V, 600V
5A
1.7V
35ns
150A
DO-201AD
General Purpose
1N4148TR
https://www.meritekusa.com/wp-content/uploads/2018/06/Fast-Switching-Diodes-DO-35-Leaded-1N4148TR.pdf
75V
0.15A
1V
4ns
2A
DO-35
General Purpose
MUR30-T247
https://www.meritekusa.com/wp-content/uploads/2024/11/Meritek-Spec-MUR30-T247.pdf
200V, 400V, 600V
30A
1.6V
35ns
200A
TO-247
General Purpose
