Part Number
|
SAC12-TR
|
|
Description
|

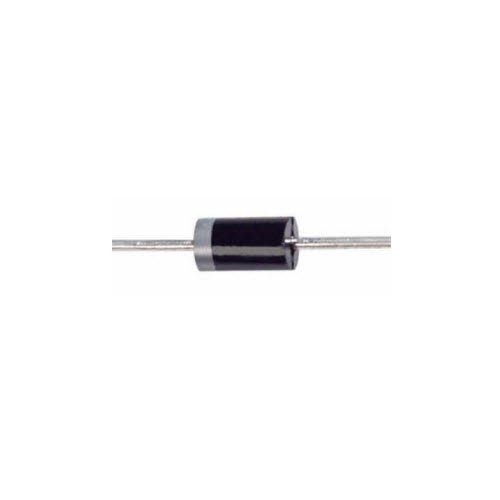

19V Clamp 25A Ipp TVS Diode Through Hole DO-204AC (DO-15) UniPolar T&R
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL/cUL E223045
|
Product Characteristics
| Peak Power Dissipation (@10/1000us) | 500W |
| Peak Forward Surge Current | – |
| Peak Reverse Working Voltage | 12V |
| Reverse Surge Current (Max.) | 25A |
| Operating Temperature | -55 ~ 175 degC |
| Package / Case | DO-204AC / DO-15 |
| Applications | General Purpose |
| Mounting Type | Axial – Through Hole |
| Voltage Breakdown (Min.) | 13.3V |
| Voltage Breakdown (Max.) | – |
| Test Current | – |
| Reverse Leakage IR@ VRWM (Max.) | 1uA |
| Clamping Voltage (Max.) | 19V |
| Directional Channels | Uni-Polar |
| Features | Low Incremental Surge Resistance |
| Series | SAC |
| Packaging | Tape and Reel |
| Part Status | Active |
