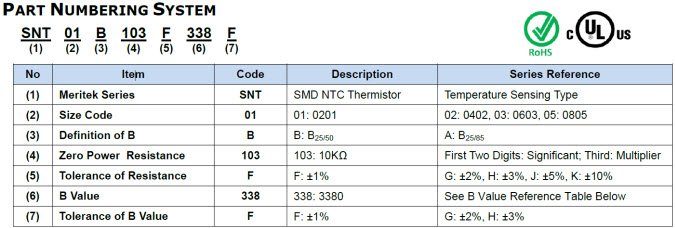

Part Number
|
SNT03B104J359F
|
|
Description
|
100K ohms +/-5% 0603 (1608 Metric) 3590K +/-1% SMD NTC Thermistor
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL E223037
|
Product Characteristics
| Resistance @ 25degC | 100K ohms |
| Tolerance of Resistance | +/-5% |
| Definition of B | B25/50 |
| B Value | 3590K |
| Tolerance of B Value | +/-1% |
| Operating Temperature | -40~+125 degC |
| Package / Case | 0603 (1608 Metric) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Size / Dimension | 1.60 +/-0.15mm X 0.80 +/-0.15mm |
| Height (max.) | 0.95mm |
| Power Dissipation (max.) | 210mW |
| Dissipation Factor (approx.) | 2.1mW / degC |
| Thermal Time Constant (approx.) | 3.1sec |
| Features | Highly reliable structure, wide resistance range |
| Series | SNT |
| Packaging | Tape and Reel |
| Part Status | Active |
