Part Number
|

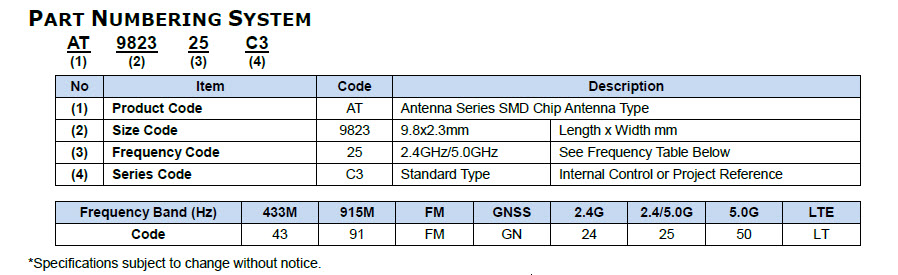

AT982325C3
|
|
Description
|

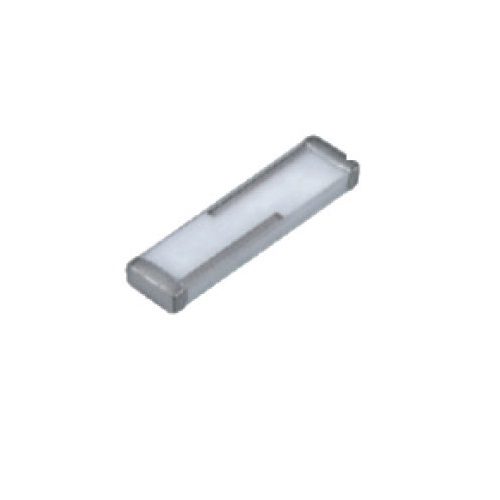

2.4/5GHz RF Ceramic Antenna
|
|
Lead Free Status / RoHS Status
|
|
|
Moisture Sensitivity Level (MSL)
|
|
|
Additional Information
|
–
|
Product Characteristics
| Center Frequency | 2.4/5GHz Dual-Band |
| Frequency Band | 2400~2500 MHz/5150~5850 MHz |
| Efficiency | 55/66% |
| Azimuth Bandwidth | Reflow Process Compatible |
| VSWR | <2.0~2.5 |
| Package / Case | 9823 |
| Applications | |
| Mounting Type | Automatic Surface Mount |
| Return Loss | |
| Polarization | Linear |
| Peak Gain | 3.8/4.0 dBi |
| Impedance (ohm) | 50 |
| Features | Linear Polarization |
| Size / Dimension | 9.8 x 2.3 mm |
| Series | C3 |
| Packaging | Tape & Reel |
| Part Status | Active |
