MFTC120N90T2PAK
Description
Product Characteristics
| Part Number | MFTC120N90T2PAK |
| FET-Type | N |
| Description | SIC Mosfet N 1200V 90A 341W T2PAK |
| Drain to Source Voltage (Vdss) | 1200V |
| Continuous Drain Current (Id) @ 25°C | 90A |
| Rds On (Max) @ Id, Vgs | 26mΩ |
| Gate Charge (Qg) (Max) @ Vgs | 235nC |
| Input Capacitance (Ciss) (Max) @ Vds | 4600pF |
| Power Dissipation (Max) | 341W |
| Operating Temperature | -55 ~ 175°C |
| Application | General Purpose |
| Mounting Type | Surface Mount |

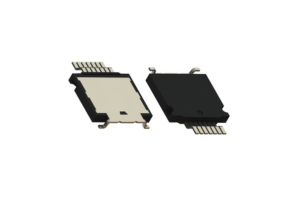

| Package / Case | T2PAK |
Environmental Classifications
| RoHS Status | ROHS Compliant |
| REACH Status | REACH Unaffected |
