Part Number
|
SIM6R8M3225BAE
|
|
Description
|

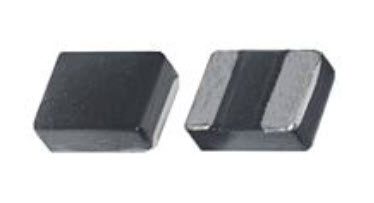

6.8µH 220mΩ SMD Power Inductor
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance (µH) | 6.8µH |
| Tolerance | ±20% |
| DC Resistance Typical | 183mΩ |
| DC Resistance Max | 220mΩ |
| Operating Temperature | -40 ~ 125 ˚C (including self-temperature rise) |
| Package / Case | 3225B |
| Applications | DC/DC Converters, Smart Phone, PAD, Power Supply |
| Mounting Type | Surface Mount |
| Saturation Current Typical | 1.8A |
| Saturation Current Max | 1.5A |
| Heat Rating Current Typical | 1.7A |
| Heat Rating Current Max. | 1.4A |
| Test Frequency | 100KHz |
| Size | 3.2X2.5X1.0mm |
| Features | High Saturation Current, Low DCR, High Efficiecy |
| Series | SIM-3225BAE |
| Packaging | Tape and Reel |
| Part Status | Active |
