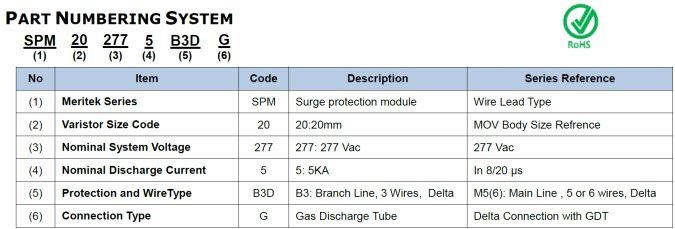

Series Number
|
SPM(G)
|
|
Description
|

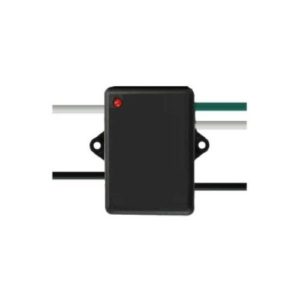

277Vac 5KA Imax 10KA Surge Protection Module, w/ GDT
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Compliance
|
IEC/EN61643-11 Class II
|
|
Additional Information
|
Compliant w/ UL 1449 4th Type CA and CSAC22.2
|
Product Characteristics
| Nominal System Voltage, Un | 277Vac |
| Max Continous Operating Voltage, Uc | 320Vac |
| Working Frequency | 50/60Hz |
| Nominal Discharge Current In (8/20 us) | 5KA |
| Max Discharge Current, Imax (8/20us) | 10KA |
| Protection Type | Branch or Main Line Protection |
| Application | General voltage driver and rectifier |
| Wire Model | 3, 5, 6 Wire (Option) |
| Measured Limiting Voltage, MLV (L-N) | 1250V, 1310V |
| Measured Limiting Voltage, MLV (L-G) | 1780V, 1750V |
| Measured Limiting Voltage, MLV (N-G) | 1810V, 1620V |
| Voltage Protection Level, Up (L-N) | 1200V |
| Voltage Protection Level, Up (L-G) | 1800V |
| Voltage Protection Level, Up (N-G) | 1800V |
| Rated Laod Current, IL | 5A |
| Series | SPM-G |
| Packaging | Bulk |
| Part Status | Active |
