Series Number
|
SIM02-HM11
|
|
Description
|

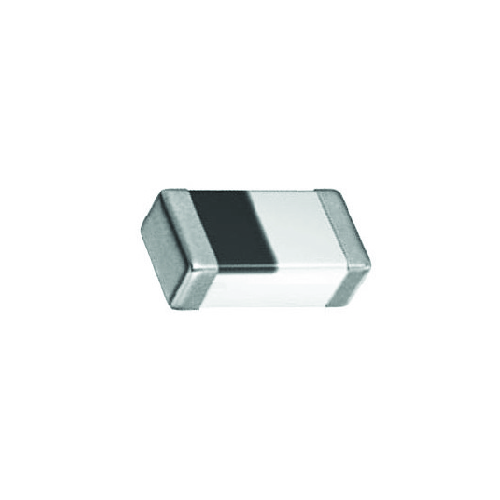

SMD Ceramic Chip Inductor High Frequency AEC-Q200 |
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
Small Size and Low Profile
|
Product Characteristics
| Inductance(nH) | 0.3 ~100 nH |
| Tolerance | ±0.1nH, ±0.2nH, ±0.3nH, ±2%, ±3%, ±5% |
| Q Min. | 8 |
| Rated Current (Max.) | 200~ 1,000mA |
| Operating Temperature | -55~ +125 degC |
| Package / Case | 01: 0201 |
| Feature | High Frequency Application Range up to 20GHz. |
| SRF(MHz) Min. | 600~10,000 |
| Size / Dimension | 02 |
| DCR (Ω) Max. | 0.08 mm~1.60 mm |
| Test Frequency | 100 MHz |
| Rated Current (mA) Max. | 200~1000 mA |
| Applications | RF and Wireless Communication, Information Technology Equipment, Radar Detectors, Automotive Electronics. |
| Reel Size | 0402 |
| Qty Per Reel (pcs) | 10,000 |
| Series | SIM02-HM11 |
| Packaging | Tape and Reel |
| Part Status | Active |
