Part Numbe
|
PIW04-A63
|
|
Description
|
Power Inductor
SMD Low Profile, High Current |
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 0.24~ 10 µH |
| Tolerance | +/-20% |
| Test Frequency (Hz) | 1V/1M |
| Operating Temperature | -40 ~ 125 degC |

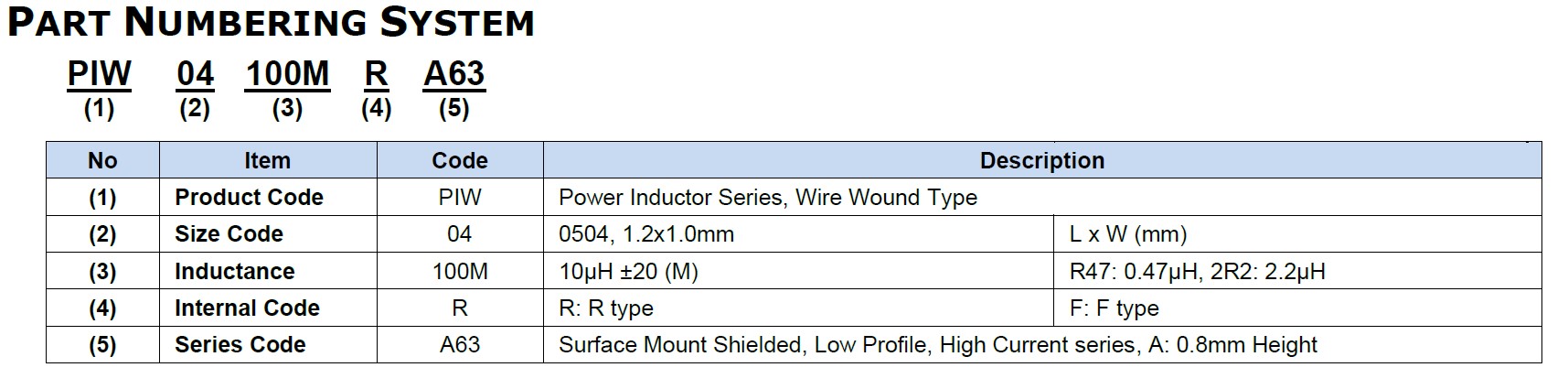

| Series Code | A63/Surface Mount Shielded, Low Profile, High Current series, A: 0.8mm Height, |
| DC Resistance (Max.) | 0.48~2.4 mΩ |
| Applications | DC/DC Converter, Battery Powered Devices, Low Profile High Current Power Supply, Notebook/Server |
| Package / Case | 0504/1.2 x 1.0mm |
