Series Number
|
MXTU
|
|
Description
|

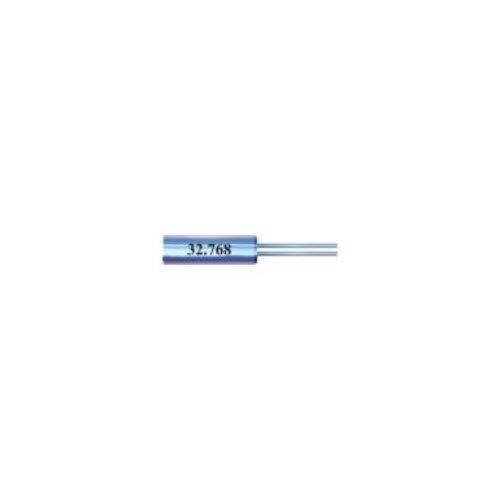

32.768 kHz Crystal Cylindrical Leaded, 6.2×2.1mm
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Frequency | 32.768 kHz |
| Load Capacitance | 6pF, 12.5pF |
| Frequency Tolerance | +/-10ppm, +/-20ppm |
| Frequency Stability | – |
| Operating Temperature | -10 ~ +60 degC (options available) |
| Storage Temperature | -40 ~ +85 degC |
| Package / Case | Cylindrical Can T/H |
| Applications | Measuring Instruments, Clock Source, Communications, A/V Equipment |
| Mounting Type | Through Hole |
| ESR – max. | 35kohm |
| Drive Level – max. | 1uW |
| Insulation Resistance (@100Vdc +/-15V) – min. | 500Mohm |
| Operating Mode | Fundamental |
| Lead Style | Radial Leaded |
| Dimensions | 6.20mm x 2.10mm(DIA.) |
| Series | MXTU |
| Packaging | Bulk |
| Part Status | Active |
