Part Number
|
ME52U10S23
|
|
Description
|

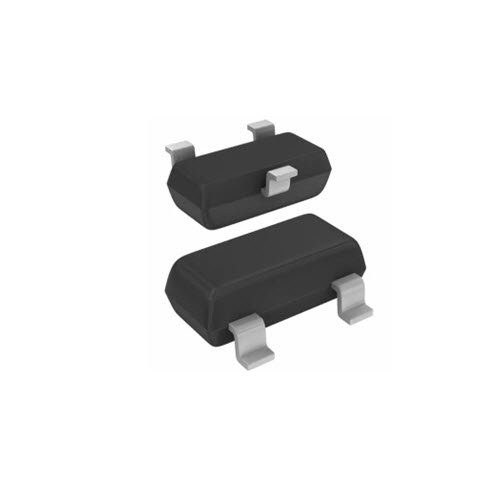

5V ESD Suppressor 2-Channel Unidirectional 10V Clamp 0.35pF SOT-23
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| ESD Voltage – Contact (max.) | +/-15KV |
| ESD Voltage – Air (max.) | +/-20KV |
| Power – Peak Pulse (tp=8/20us) | – |
| Operating Temperature (degC) | -55~+150 |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23 |
| Channels – Polarity | 2-Channel Unidirectional |
| Reverse Stand-Off Voltage (max.) | 5V |
| Reverse Breakdown Voltage (min.) | 5.5V |
| Reverse Leakage Current (max.) | 50uA |
| Clamping Voltage (max.) | 10V |
| Clamping Voltage (max.) | 15V |
| Clamping Voltage TLP (typ.) | 16V |
| Clamping Voltage TLP (typ.) | 23.5V |
| Dynamic Resistance (typ.) | 0.94ohm |
| Capacitance (max.) | 0.35pF |
| Packaging | Tape and Reel |
| Part Status | Active |
