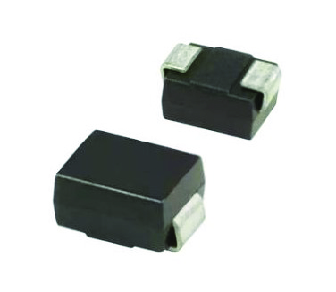

Series Number
|
S3x
|
|
Description
|
Silicon Rectifier
3.0A, DO-214AB SMC |
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
Low forward voltage drop
|
Product Characteristics
| Maximum Recurrent Peak Reverse Voltage | 50~1000V |
| Maximum RMS Voltage | 35~700V |
| Maximum DC Blocking Voltage | 50~1000V |
| Maximum Average Forward Rectified Current | 3A |
| Operating Temperature | 25~+125 degC |
| Package / Case | DO-214AB(SMC), Molded Plastic |
| Applications | Automotive |
| Mounting Type | Surface Mount |
| Peak Forward Surge Current, 8.3ms Single Half Sine Wave (JEDEC method) |
100A |
| Terminals | Solderable per MIL-STD, Method 2026 |
| Maximum Forward Voltage at 3A | 1.10V |
| Maximum Reverse Current at Rated VDC – TJ 25c | 1.7uA |
| Maximum Reverse Current at Rated VDC – TJ 125c | 540uA |
| Features | Glass Passivated Die Construction, Low forward voltage drop |
| Polarity | Color Band Denotes Cathode End |
| Series | S3xB-A |
| Packaging | Tape and Reel |
| Part Status | Active |
