Series Number
|
SIC-12141 series
|
Description
|

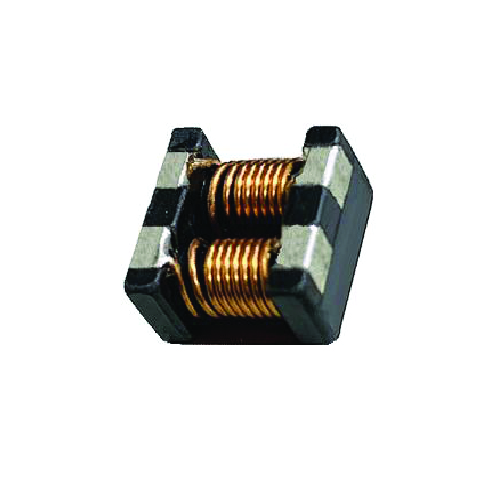

Common Mode Filter 12.0×11.0mm
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Product Characteristics
Common Mode Impedance Min(Ω) | 80 ~ 2300 mΩ |
Common Mode Impedance Typ (Ω) | 230 ~2700mΩ |
Operating Temperature | -40 ~ 125 ˚C (see datasheet) |

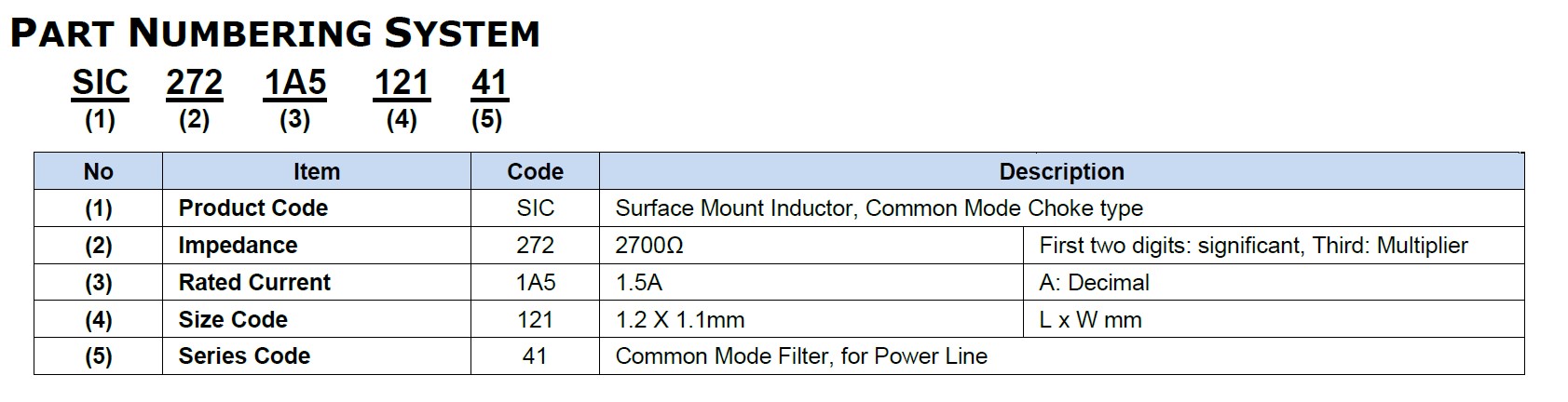

Product Code | SCI / Surface Mount Inductor, Common Mode Choke type |
Applications | High-Density Portable Devices, Personal Computers, Display Panels, DC Power Lines and Automotive Power Trains |
Series Code | 41/Common Mode Filter, for Power Line |
DCR Max (mΩ) | 2.0 ~ 50 mΩ |
Rated Current (A) | 1.5 ~ 10A |
Rated Voltage (Vdc) | 125 |
IR Min (MΩ) | 10 |
Test Frequency | 100MHz |
Height | 6.4 mm |
Size | 1.2 X 1.1mm |
Features | Excellent Impedance Characteristics for Noise Suppression,Low Profile Construction Design |
Packaging | Tape and Reel |
Part Status | Active |
