Series Number
|
15KPA
|
|
Description
|

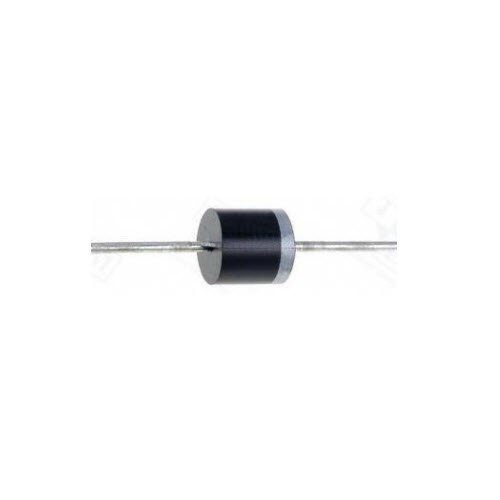

Transient Voltage Suppressors – P600 Leaded Type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL/cUL E223045
|
Product Characteristics
| Peak Power Dissipation (@10/1000us) | 15000W |
| Peak Forward Surge Current | 400A |
| Peak Reverse Voltage | 17.0 ~ 280.0V |
| Reverse Surge Current (Max.) (@10/1000us) | 33.2 ~ 515.4A |
| Operating Temperature | -55 ~ 175 °C |
| Package / Case | P600 |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Voltage – Breakdown (Min.) | 18.99 ~ 312.80V |
| Reverse Leakage Current (Max.) | 2 ~ 5000uA |
| Clamping Voltage (Max.) | 29.3 ~ 454.5V |
| Unidirectional Channels | Uni-/Bi-directional |
| Lead Style | Axial Leaded |
| Features | Low Incremental Surge Resistance |
| Ratings | UL E223045 |
| Series | 15KPA |
| Packaging | Tape and Reel, Ammo |
| Part Status | Active |
