Part Number
|
PIW06-A63
|
|
Description
|
Power Inductor
SMD Low Profile, High Current AEC-Q200 |
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 0.24~10µH |
| Tolerance | +/-20% |
| Test Frequency (Hz) | 1V/1M |
| Operating Temperature | -40~ 125 degC |

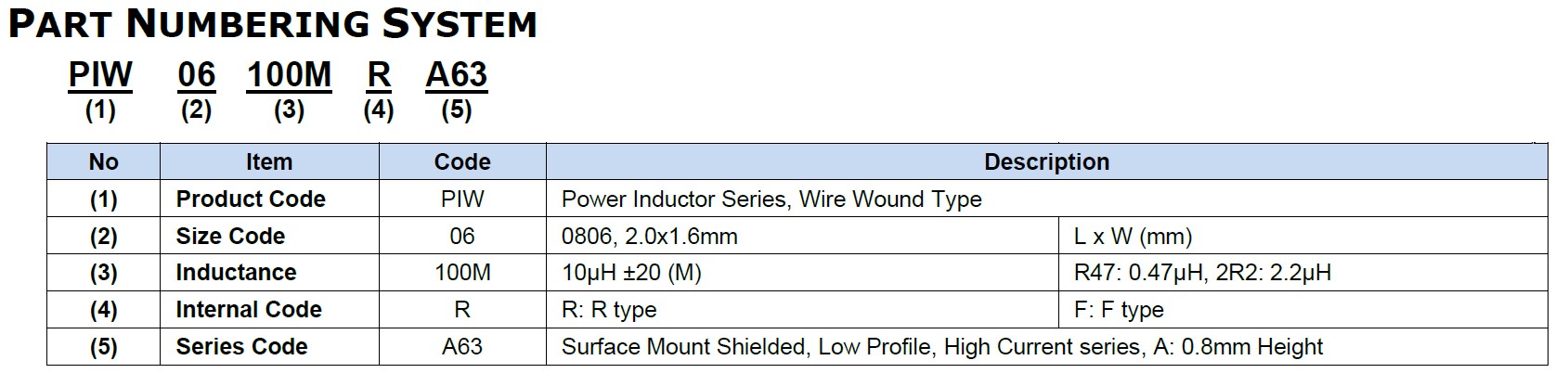

| Series Code | A63/Surface Mount Shielded, Low Profile, High Current series, A: 0.8mm Height. |
| DC Resistance (Max.) | 0.036~0.96 Ω |
| Applications | DC/DC Converter, Battery Powered Devices, Low Profile High Current Power Supply, Notebook/Server |
| Feature | Magnetic Shield Construction for Power Circuit. Large Current and Low DC Resistance. |
| Package / Case | 0806/2.0×1.6 mm |
