Part Number
|
SIC2-TCI
|
|
Description
|

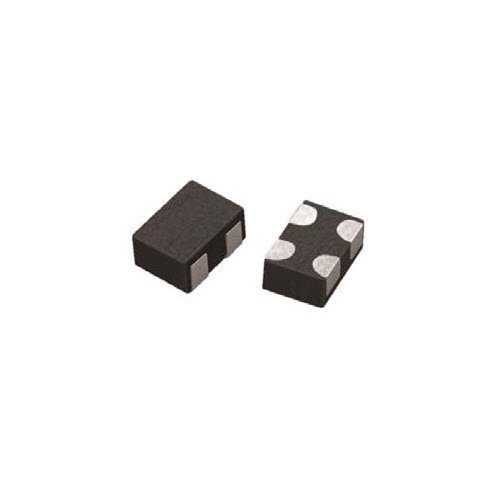

12 ~ 90ohm 100V Common Mode Filter 2 Line
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Common mode Impedance (ohm) @100MHz | 12 ~ 90 |
| Tolerance | +/-5?, -10/+15ohm, +/-20%, +/-25% |
| DC Resistance (ohm) Max. | 2.00 ~ 3.30 |
| Rated Current (mA) Max. | 100 |
| Operating Temperature | -25~85 °C |
| Package / Case | 0.85×0.65×0.4mm (0302) |
| Applications | Display Port, e-SATA, USB 2.0, USB 3.0, IEEE 1394, LVDS, DVI, HDMI, MIPI, and MHL.USB3.1 |
| Mounting Type | Surface Mount |
| Rated Voltage (V) | 5 |
| Insulation Resistance (Mohm) Min. | 10 |
| Withstand Voltage (V) | – |
| Capacitance @0.5V 1MHz Max(pF) | – |
| Leakage Current @5V Max(uA) | – |
| Trigger Voltage (V) Typ. | – |
| Cut-off Frequency (GHz) Typ. | – |
| Series | SIC2-TCI |
| Packaging | Tape and Reel |
| Part Status | Active |
