Part Number
|

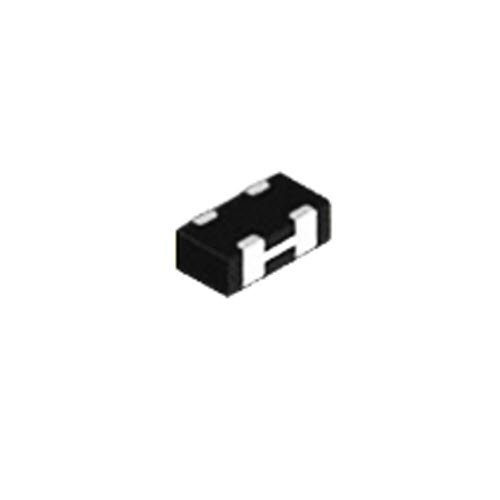

SIC6-MCI
|
Description
|
90 ~ 120ohm 500V Common Mode Filter 2 Line
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
–
|
Product Characteristics
Common mode Impedance (ohm) @100MHz | 90 ~ 120 |
Tolerance | +/-25% |
DC Resistance (ohm) Max. | 0.5 |
Rated Current (mA) Max. | 500 |
Operating Temperature | -40 ~ 85 °C |
Package / Case | 3.20×1.60x1mm (1206) |
Applications | USB, LVDS |
Mounting Type | Surface Mount |
Rated Voltage (V) | 10 |
Insulation Resistance (Mohm) Min. | 200 |
Withstand Voltage (V) | 25 |
Capacitance @0.5V 1MHz Max(pF) | – |
Leakage Current @5V Max(uA) | – |
Trigger Voltage (V) Typ. | – |
Cut-off Frequency (GHz) Typ. | – |
Series | SIC6-MCI |
Packaging | Tape and Reel |
Part Status | Active |
