Part Number
|
ME3V31U6V5S523A
|
|
Description
|

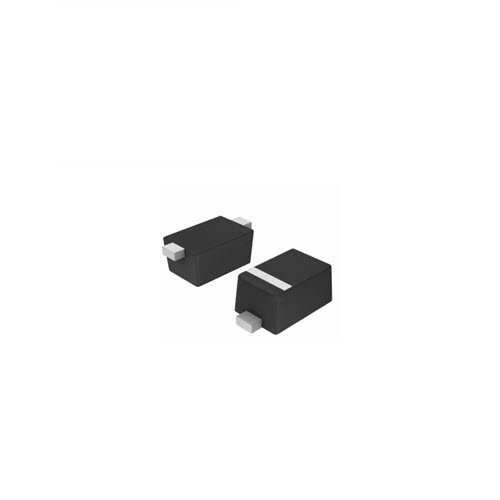

3.3V ESD Suppressor 1-Channel Unidirectional 6.5V Clamp 200pF SOD-523
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
Automotive, AEC-Q101
|
Product Characteristics
| ESD Voltage – Contact (max.) | +/-25KV |
| ESD Voltage – Air (max.) | +/-25KV |
| Power – Peak Pulse (tp=8/20us) | 120W |
| Current – Peak Pulse (tp=8/20us) | 5A |
| Operating Temperature (degC) | -55~+150 |
| Mounting Type | Surface Mount |
| Package / Case | SOD-523 |
| Channels – Polarity | 1-Channel Unidirectional |
| Reverse Stand-Off Voltage (max.) | 3.3V |
| Reverse Breakdown Voltage (min.) | 4V |
| Reverse Leakage Current (max.) | 200uA |
| Clamping Voltage (max.) | 6.5V |
| Clamping Voltage (max.) | – |
| Peak Pulse Current (max.) | – |
| Forward Voltage (max.) | – |
| Capacitance (max.) | 200pF |
| Packaging | Tape and Reel |
| Part Status | Active |
