Series Number
|
BAV99 |
Description
|

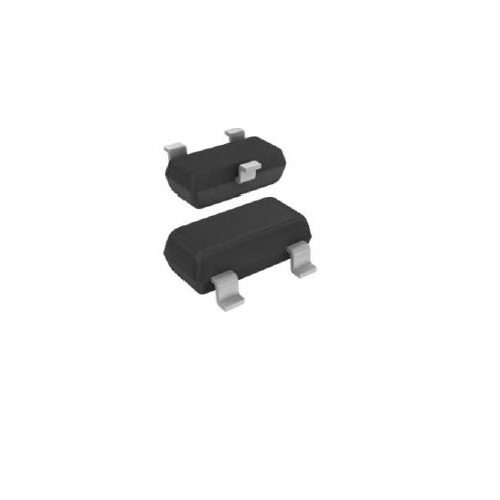

Fast Switch Diode – SOT-23 Package
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
– |
Product Characteristics
Reverse DC Voltage | 75V |
Continuous Forward Current | 125-215mA |
Non-repetitive Peak Forward Surge Current | 0.5-2A |
Operating Temperature | -55 ~ 150 °C |
Package / Case | SOT-23 |
Applications | General Purpose |
Mounting Type | Surface Mount |
Max Reverse Current @ 150°C | 50uA |
Thermal Resistance | 556°C/W |
Junction Capacitance | 1.5pF |
Reverse Recovery Time | 6ns |
Power Dissipation | 225mW |
Features | Terminals: Solderable per MIL-STD-750, Method 2026 |
Ratings | – |
Series | BAV99 |
Packaging | Tape and Reel |
Part Status | Active |
