Series Number
|
ABS12 – ABS110
|
|
Description
|

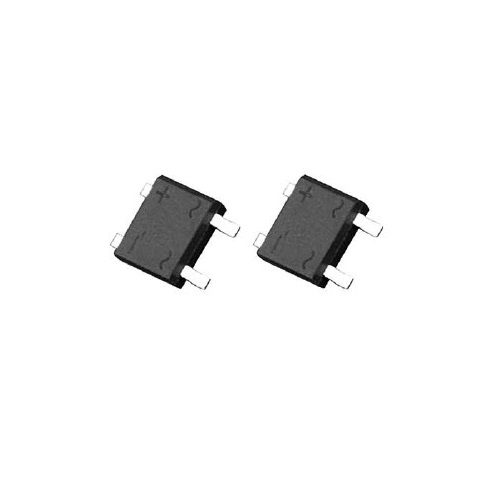

Single Phase Bridge Rectifier – 1A 200-1KV 4-SMD
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
Plated lead soderable per MIL-STD 202, method 208
|
Product Characteristics
| Max Reverse Voltage | 200 ~ 1000V |
| Max Forward Current on Aluminum substract | 1.0A |
| Max RMS Voltage | 140 – 700V |
| Peak Forward Surge Current | 30A |
| Operating Temperature | -55 ~ 150 °C |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Rating for Fusing | 3.7 A2sec |
| Reverse Current @25?C | 5uA |
| Thermal Resistance(Junction to lead) | 25 °C/W |
| Features | SOPA-4, Molded Plastic ABS |
| Series | ABS |
| Packaging | Tape and Reel |
| Part Status | Active |
