Part Number
|

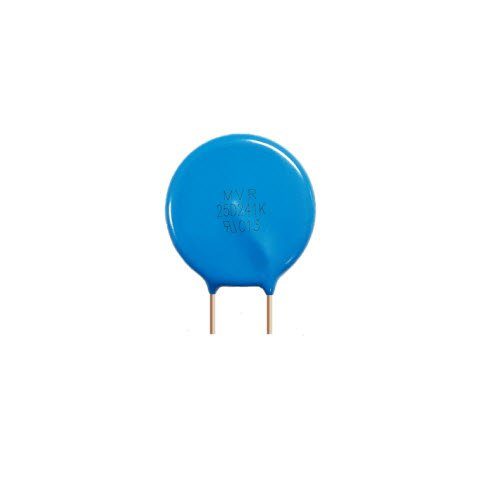

MVR10D511KY-STR
|
Description
|
320Vac 3.5KA 10mm Varistor 1 Circuit 510V 90J Y Kink Leads Tape and Reel
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
UL/cUL No:E326004, VDE No:40013638
|
Product Characteristics
Varistor DC Voltage (@1mA) | 510V (459~561) |
Allowablle Voltage (VACrms) – max. | 320Vac |
Allowablle Voltage (VDC) – max. | 415Vdc |
Withstanding Surge Current | 3500A |
Operating Temperature | -40 ~ +105 degC |
Storage Temperature | -40 ~ +125 degC |
Disc Size | 10mm |
Application | General Purpose |
Lead Style | Y Kink |
Clamping Voltage – max. | 845V |
Energy (@10/1Kus) – max. | 90J |
Typical Capacitance (@1KHz) | 200pF |
Diameter (mm) – max. | 12.5mm |
Thickness (mm) – max. | 6.8mm |
Lead Space (mm) | 7.5mm |
Series | MVR-S |
Packaging | Tape and Reel |
Part Status | Active |
