Series Number
|
SMA6J
|
Description
|

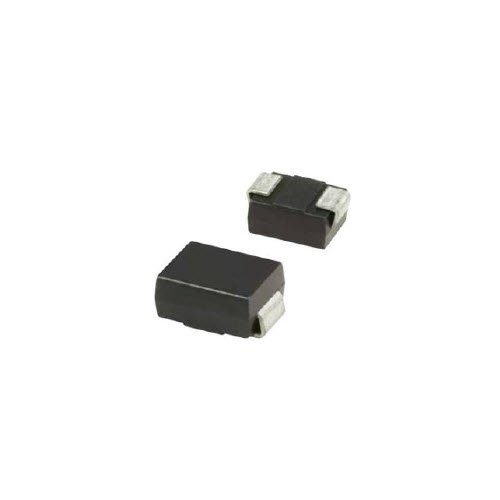

Transient Voltage Suppressors – DO-214AC SMD Type
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
UL Flammability Rating: 94V-0
|
Product Characteristics
Peak Power Dissipation (@10/1000us) | 600W |
Power Dissipation on Infinite Heatsink | 3W |
Peak Forward Surge Current | 60A |
Peak Reverse Voltage | 5 ~ 58V |
Operating Temperature | -55 ~ 150 °C |
Package / Case | DO-214AC |
Applications | General Purpose |
Mounting Type | Surface Mount |
Voltage – Breakdown (Min.) | 6.4 ~ 64.4 V |
Reverse Leakage Current (Max.) | 1 ~ 800uA |
Clamping Voltage (Max.) | 9.2 ~ 93.6V |
Unidirectional Channels | Uni-/Bi- directional |
Lead Style | – |
Features | Low Leakage |
Ratings | UL 94V-0 |
Series | SMA6J |
Packaging | Tape and Reel |
Part Status | Active |
