Series Number
|
P6SMB
|
Description
|

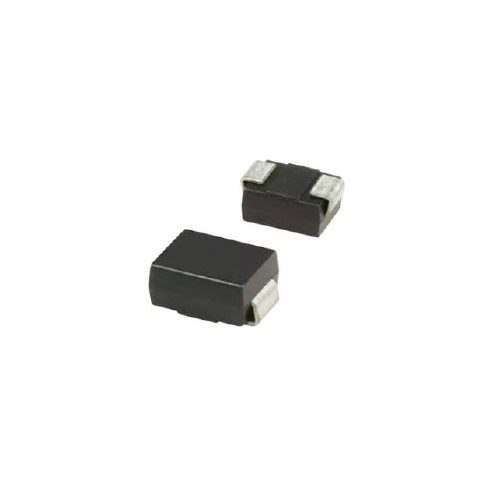

Transient Voltage Suppressors – DO-214AA SMB Type
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
UL/cUL E223045
|
Product Characteristics
Peak Power Dissipation (@10/1000us) | 600W |
Peak Forward Surge Current | 100A |
Peak Reverse Voltage | 5.8 ~ 513V |
Reverse Surge Current (Max.) (@10/1000us) | 0.72 ~ 57.14A |
Operating Temperature | -55 ~ 150 °C |
Package / Case | DO-214AA/SMB |
Applications | General Purpose |
Mounting Type | Surface Mount |
Voltage – Breakdown (Min.) | 6.46 ~ 570V |
Reverse Leakage Current (Max.) | 1 ~ 1000uA |
Clamping Voltage (Max.) | 10.5 ~ 828V |
Unidirectional Channels | Uni-/Bi-directional |
Lead Style | – |
Features | Very Fast Response Time |
Ratings | UL/cUL E223045 |
Series | P6SMB |
Packaging | Tape and Reel |
Part Status | Active |
