Part Number
|
SIC12-41
|
|
Description
|
Common Mode Filter 4.5 x 3.2 mm
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
Low Profile Construction Design
|
Product Characteristics
| Common mode Impedance (ohm) @100MHz | 80 ±25% ~ 2800typ(2100min) |
| DC Resistance (ohm) Max. | 50~ 350 |
| Rated Current (A) Max. | 0.9~ 4.0 |
| Operating Temperature | -40 ~ 105 °C |
| Package / Case | 1812/4.5 X 3.2 mm, L x W (mm) |
| Applications | High-Density Portable Devices, Personal Computers, Display Panels, DC Power Lines and Automotive Power Trains |
| Mounting Type | Surface Mount |
| Rated Voltage (V) | 50 |
| Insulation Resistance (Mohm) Min. | 10 |
| Withstand Voltage (V) | 125V |

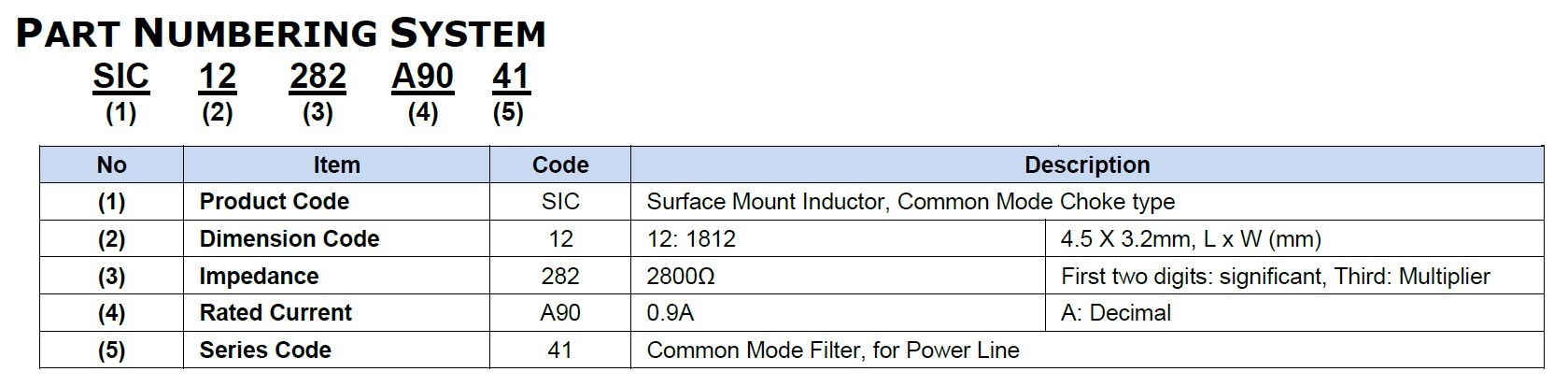

| Product Code | SIC , Surface Mount Inductor, Common Mode Choke type |
| Test Frequency (MHz) | 100 |
| Impedance | 2800Ω,1400Ω,900Ω,,800Ω,600Ω,420Ω,230Ω,200Ω,120Ω,90Ω,80Ω |
| Feature | Common Mode Filter For Large Current Applications |
| Series | SIC12-41 |
| Packaging | Tape and Reel |
| Part Status | Active |
