Part Number
|
SIM01220Y1A032
|
Description
|

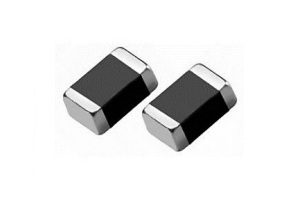

22ohm 1A Signal Ferrite Chip Bead 0.065ohm max DCR 0201 (0603 Metric)
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
–
|
Product Characteristics
Impedance | 22ohm |
Tolerance | +/-25% |
DC Resistance (Max.) | 0.065ohm |
Rated Current (Max.) | 1A |
Operating Temperature | -40 ~ +125 degC |
Package / Case | 0201 (0603 Metric) |
Applications | General Purpose |
Mounting Type | Surface Mount |
Size / Dimension | 0.60mm x 0.30mm |
Thickness (Max) | 0.30 +/-0.03mm |
Test Frequency | 100MHz |
Rating | High Current Type |
Features | Low DC resistance elctrode structure |
Reel Size | 178mm (7″) |
Qty Per Reel (pcs) | 15000 |
Series | SIM-32 |
Packaging | Tape and Reel |
Part Status | Active |
