Part Number
|
PID-12552 series
|
|
Description
|

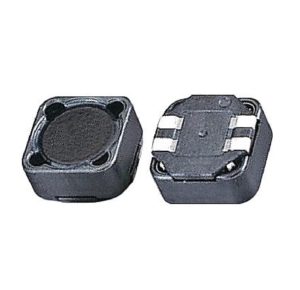

ARRAY COILS DUAL SMD 12.0×12.0 H6.5mm
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 4.7~ 1000uH |
| Tolerance | ±10% , +/-20% |
| DC Resistance (Max.) | 0.36~ 3.06ohm |
| Rated Current (Max.) | 350 ~ 1800mA |
| Operating Temperature | -40 ~ 125 degC |
| Nominal Inductance | 2.5~1000 μH ±20% |
| Applications | Parallel, Series, Dual-Inductor and Transformer |
| Mounting Type | Surface Mount |
| Inductance Test Frequency | 0.1V/100K |

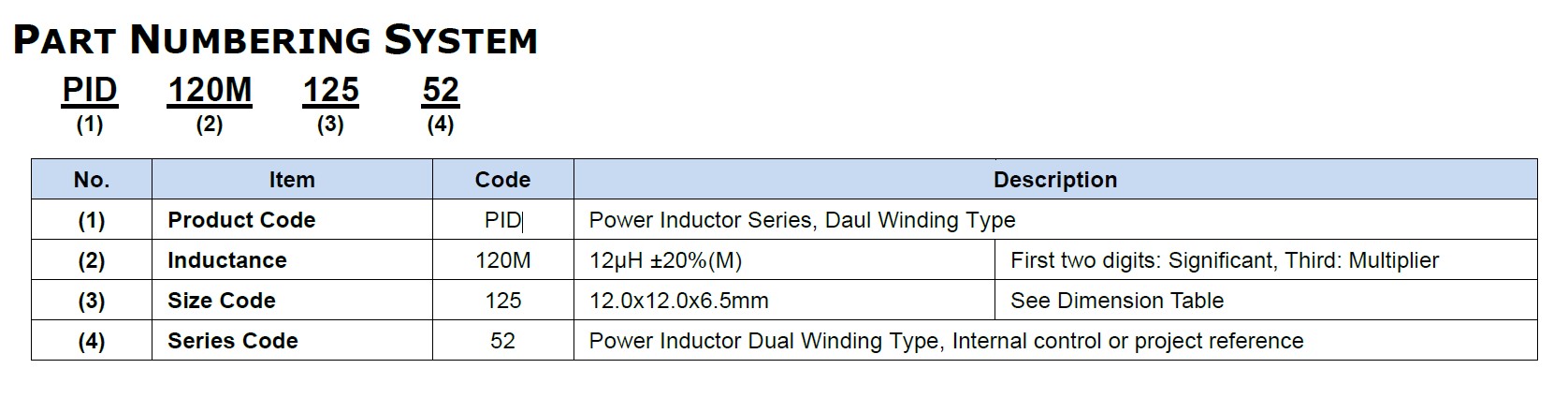

| Product Code | PID |
| Isat (A) | 10.3~0.69A |
| Irms (A) | 3.16~0.34A |
| Size / Dimension | 125 , 12.0×12.0x6.5mm |
| Features | ARRAY COILS DUAL SMD 12.0×12.0 H6.5mm |
| Ratings | – |
| Series | 52 |
| Packaging | Tape and Reel |
| Part Status | Active |
