Series Number
|
MX5
|
|
Description
|

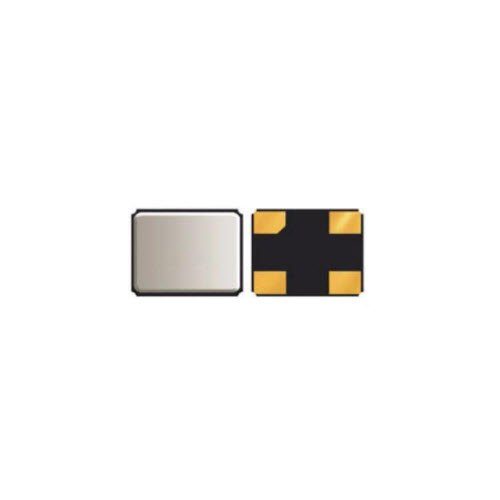

Ceramic Crystal 4-Pad Surface Mount 5×3.2mm
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Frequency | 8.000 – 54.000MHz |
| Load Capacitance | 3 – 32pF |
| Frequency Tolerance | +/-10, +/-15, +/-20, +/-25, +/-30, +/-50ppm |
| Frequency Stability | +/-10, +/-15, +/-20, +/-25, +/-30, +/-50, +/-100ppm |
| Operating Temperature | -40 ~ +85 degC (options available) |
| Storage Temperature | -55 ~ +125 degC |
| Package / Case | SMD5032 |
| Applications | Wired Network, Mobile Communication, WiMAX, WLAN, Test Equipment |
| Mounting Type | Surface Mount |
| ESR – max. | 60ohm |
| Drive Level – max. | 100uW |
| Insulation Resistance (@100Vdc +/-15V) – min. | 500Mohm |
| Operating Mode | Fundamental, 3rd OT |
| Lead Style | 4-Pad |
| Dimensions | 5.00mm x 3.20mm x 1.00mm |
| Series | MX5 |
| Packaging | Tape and Reel |
| Part Status | Active |
