Part Number
|
ME81B13S323GA
|
Description
|

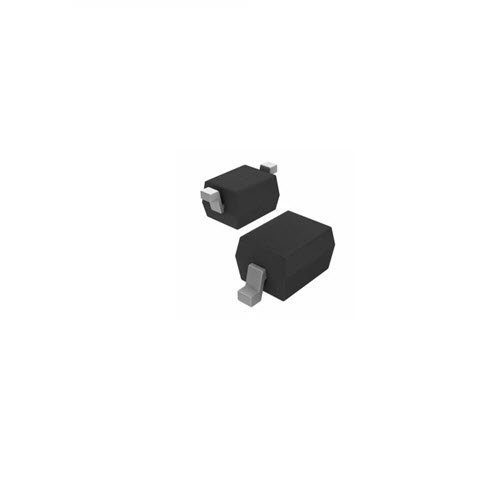

8V ESD Suppressor 1-Channel Bidirectional 13V Clamp 1pF (typ.) SOD-323G
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
Automotive, AEC-Q101
|
Product Characteristics
ESD Voltage – Contact (max.) | +/-30KV |
ESD Voltage – Air (max.) | +/-30KV |
Power – Peak Pulse (tp=8/20us) | 350W |
Current – Peak Pulse (tp=8/20us) | 10A |
Operating Temperature (degC) | -55~+150 |
Mounting Type | Surface Mount |
Package / Case | SOD-323G |
Channels – Polarity | 1-Channel Bidirectional |
Reverse Stand-Off Voltage (max.) | 8V |
Reverse Breakdown Voltage (min.) | 8.5V |
Reverse Leakage Current (max.) | 1uA |
Clamping Voltage (max.) | 13V |
Clamping Voltage (max.) | 24V |
Peak Pulse Current (max.) | – |
Forward Voltage (max.) | – |
Capacitance (max.) | 1pF (typ.) |
Packaging | Tape and Reel |
Part Status | Active |
