Part Number
|
ME52U10D02315
|
Description
|
5V ESD Suppressor 2-Channel Unidirectional 9V Clamp 15pF DFN1006-3
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
–
|
Product Characteristics
ESD Voltage – Contact (max.) | +/-8KV |
ESD Voltage – Air (max.) | +/-15KV |
Power – Peak Pulse (tp=8/20us) | – |
Current – Peak Pulse (tp=8/20us) | – |
Operating Temperature (degC) | -55~+150 |
Mounting Type | Surface Mount |

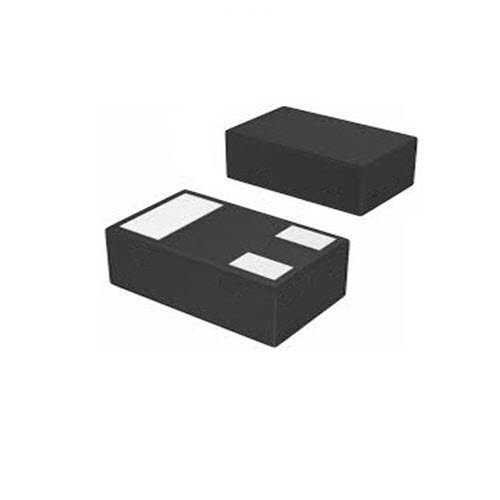

Package / Case | DFN1006-3 |
Channels – Polarity | 2-Channel Unidirectional |
Reverse Stand-Off Voltage (max.) | 5V |
Reverse Breakdown Voltage (min.) | 6.2V |
Reverse Leakage Current (max.) | 0.5uA |
Clamping Voltage (max.) | 9V |
Clamping Voltage (max.) | 10V |
Peak Pulse Current (max.) | – |
Forward Voltage (max.) | – |
Capacitance (max.) | 15pF |
Packaging | Tape and Reel |
Part Status | Active |
