Part Number
|
ME151B25D03
|
Description
|

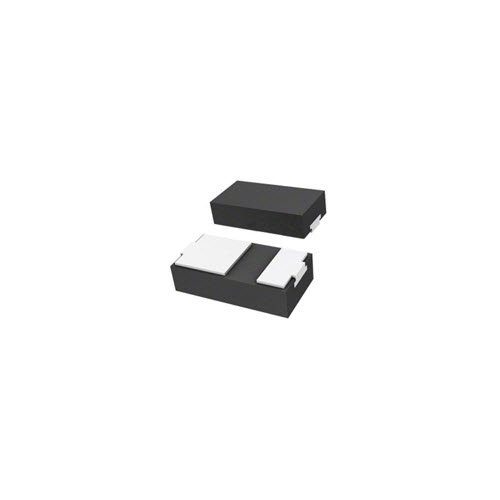

15V ESD Suppressor 1-Channel Bidirectional 25V Clamp 20pF (typ.) DFN1608
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
–
|
Product Characteristics
ESD Voltage – Contact (max.) | +/-8KV |
ESD Voltage – Air (max.) | +/-15KV |
Power – Peak Pulse (tp=8/20us) | – |
Current – Peak Pulse (tp=8/20us) | – |
Operating Temperature (degC) | -55~+150 |
Mounting Type | Surface Mount |
Package / Case | DFN1608 |
Channels – Polarity | 1-Channel Bidirectional |
Reverse Stand-Off Voltage (max.) | 15V |
Reverse Breakdown Voltage (min.) | 16.7V |
Reverse Leakage Current (max.) | 0.5uA |
Clamping Voltage (max.) | 25V |
Clamping Voltage (max.) | 50V |
Peak Pulse Current (max.) | – |
Forward Voltage (max.) | – |
Capacitance (max.) | 20pF (typ.) |
Packaging | Tape and Reel |
Part Status | Active |
