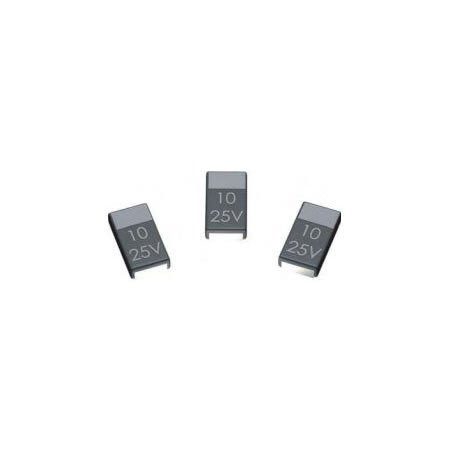

SMD Low ESR – TCL Series

TCL – Tantalum Capacitor – Surface Mount

SKU: TCL Categories: Capacitors, Tantalum Capacitor
  • Description
  • Product Numbering System
Series Number
TCL
Description
Tantalum Capacitor Low ESR – Surface Mount
Lead Free Status / RoHS Status
Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Additional Information
EIA 535BAAC Standard
Download Full Specifications (PDF)

Product Characteristics

Capacitance 0.1 ~ 1000uF
Tolerance +/-10%, +/-20%
Voltage – Rated 2.5, 4, 6.3, 10, 16, 20, 25, 35, 50V
Dielectric –
Operating Temperature -55 ~ +125degC
Package / Case 3216, 3528, 6032, 7343, 2012
Applications General Purpose
Mounting Type Surface Mount
Size / Dimension –
Height – Seated (Max) –
Thickness (Max) –
Lead Spacing –
Lead Style –
Features Low ESR
Load Life –
Series TCL
Packaging Tape and Reel
Part Status Active
