Series Number
|
CSW
|
Description
|

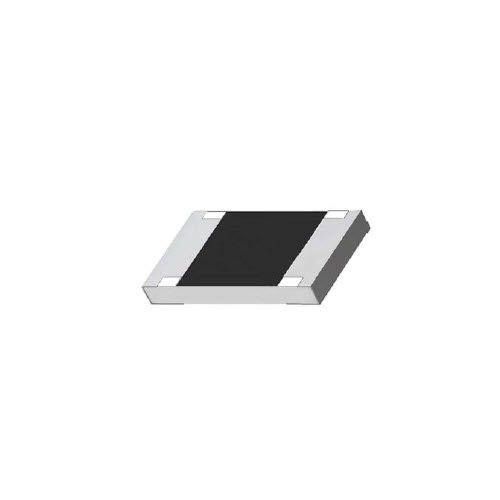

Metal Film Resistors – Anti-Surge Low Ohmic Type
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
–
|
Product Characteristics
Product Characteristics
Resistance | 50mΩ~33Ω |
Tolerance | ±0.5%, ±1%, ±2%, ±5% |
Power (Watts) | 1.0W, 1.5W, 2.0W, 3.5W |
Temperature Coefficient | ±50~±100PPM/°C |
Operating Temperature | -55 ~ 170°C |
Package / Case | 1206, 1210, 2010, 2512 |
Applications | General Purpose |
Mounting Type | Surface Mount |
Size / Dimension | – |
Height – Seated (Max) | – |
Thickness (Max) | – |
Lead Spacing | – |
Lead Style | – |
Features | High Precision Current Sensing |
Composition | Metal Film |
Series | CSW |
Packaging | Tape and Reel |
Part Status | Active |
