Series Number
|
MFT-T263
|
Description
|

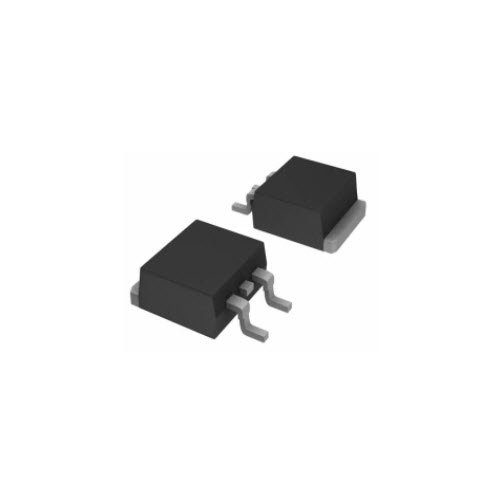

MOSFET – TO-263 Package
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
–
|
Product Characteristics
FET-Type | N |
Feature | Single |
Drain to Source Voltage | 30, 40, 60, 65, 80, 100, 150V |
Continuous Drain Current @ 25?C | 60~220A |
Operating Temperature | -50 ~ 150 °C |
Package / Case | TO263 |
Applications | General Purpose |
Mounting Type | Surface Mount |
Max Gate Threshold Voltage @ Id | +/-20, +/-25, 20/-12V |
Static Drain-Source On-Resistance @VGS | 1.7~28mohms |
Max. Gate Charge @ Vgs | 26.9~295nC |
Max. Input Capacitance @ Vds | 1810~19000pF |
Max. Power Dissipation @25?C | 73.5~463W |
Leaded Type | – |
Features | Improved dv/dt Capability |
Series | MFT-T263 |
Packaging | Tape and Reel |
Part Status | Active |
