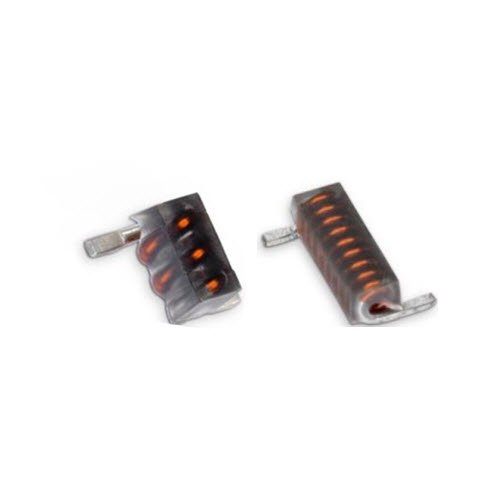

Part Number
|
SIA-03P, 04P
|
|
Description
|
RF Inductor – Air Wound Coil Signal
|
|
Lead Free Status / RoHS Status
|
–
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 1.65 ~ 12.55nH |
| Tolerance | +/-2%, +/-5%, +/-10% |
| DC Resistance (Max.) | 4 ~ 14 mohm |
| Rated Current (Max.) | 1.6A |
| Operating Temperature | -40 ~ 125 degC |
| Package / Case | 29203P, 29204P |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Turns | 2 ~ 10 |
| Factor Q (Min.) | 100 |
| Test Frequency | 800 MHz |
| SRF (Min.) | 4.6 ~ 10 GHz |
| Size / Dimension | 1.83×1.42×1.37mm, 3.66×1.42×1.37mm |
| Features | – |
| Ratings | – |
| Series | SIA-03P, 04P |
| Packaging | Tape and Reel |
| Part Status | Active |
