Series Number
|
SIM06-36
|
Description
|

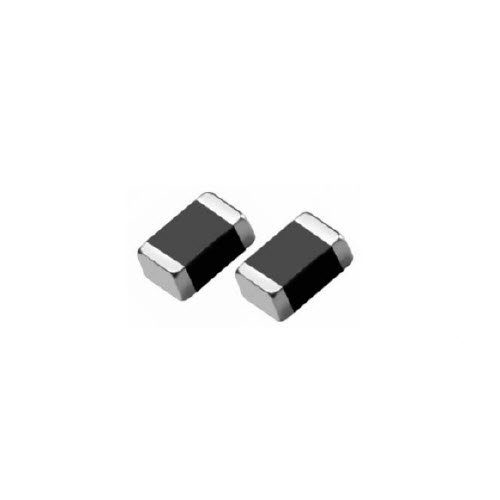

Ferrite Chip Bead High Current Type SMD
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Additional Information
|
–
|
Product Characteristics
Impedance | 19 ~ 1000Ohm |
Tolerance | +/-25% |
DC Resistance (Max.) | 0.030 ~ 0.300Ohm |
Rated Current (Max.) | 1000 ~ 3000mA |
Operating Temperature | -55 ~ +125 degC |
Package / Case | 1206 |
Applications | General Purpose |
Mounting Type | Surface Mount |
Size / Dimension | – |
Thickness (Max) | – |
Test Frequency | 100MHz |
Rating | High Current Type |
Features | Noise Reduction Solution for Signal Line |
Reel Size | – |
Qty Per Reel (pcs) | – |
Series | SIM06-36 |
Packaging | Tape and Reel |
Part Status | Active |
