Series Number
|
MSA3
|
|
Description
|

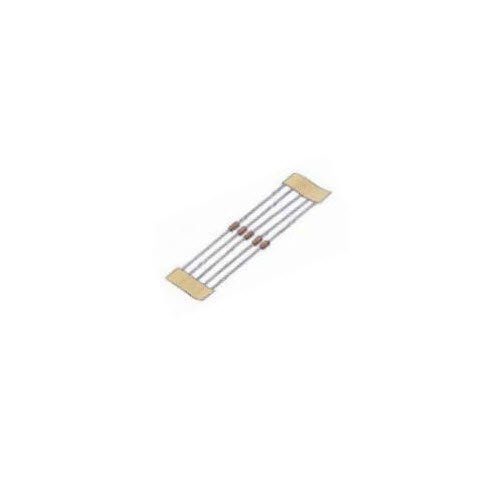

Spark Gap, Leaded, 500A Surge Current
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics

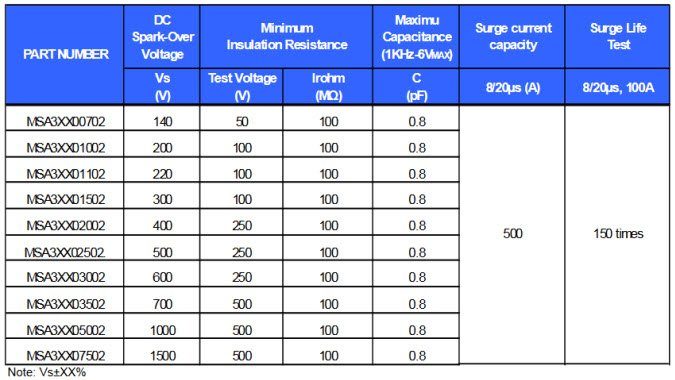

Product Characteristics
| DC Spark-Over Voltage (Vs) | 140 ~ 1500V |
| Insulation Resistance Test Voltage | 50~500V min. |
| Insulation Resistance Ir ohm | 100MΩ min. |
| Capacitance (1KHz – 6Vmax) | 0.8pF max. |
| Operating Temperature | – |
| Package / Case | Axial |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Size / Dimension | 2mm dia x 4mm |
| Surge Current Capacity (8/20µs) | 500A |
| Surge Life Test (8/20µs, 100A) | 150 Times |
| Tolerance | +/-20%, 25%, 30% |
| Lead Style | Axial Leaded |
| Features | Response time <1ns |
| Ratings | UL497A and UL497B |
| Series | MSA3 |
| Packaging | Tape and Reel |
| Part Status | Active |
